Resetting Emergency Brake

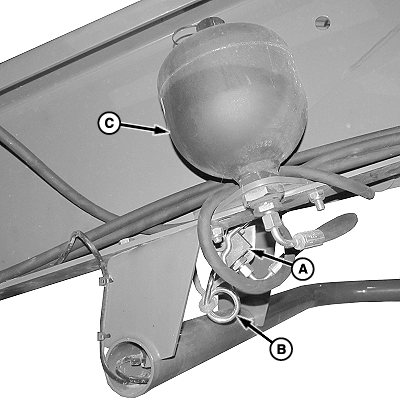

E79885-UN-18SEP15

A - Brake Valve

B - Spring Pin

C - Accumulator

The machine will not roll when emergency brake is activated and brakes are in proper adjustment.

When the emergency brake has been activated, the brake and accumulator must be reset before machine use.

Reinstall spring pin (B) into emergency brake valve (A) and rotate spring pin to vertical position.

Start tractor and apply tractor brakes for approximately 5 seconds to recharge the accumulator (C).

• Operating Position: Spring pin is positioned vertically
• Activated Position: Spring pin is removed and valve hole is in horizontal position
