Hook Lifting Mechanism Exploded View

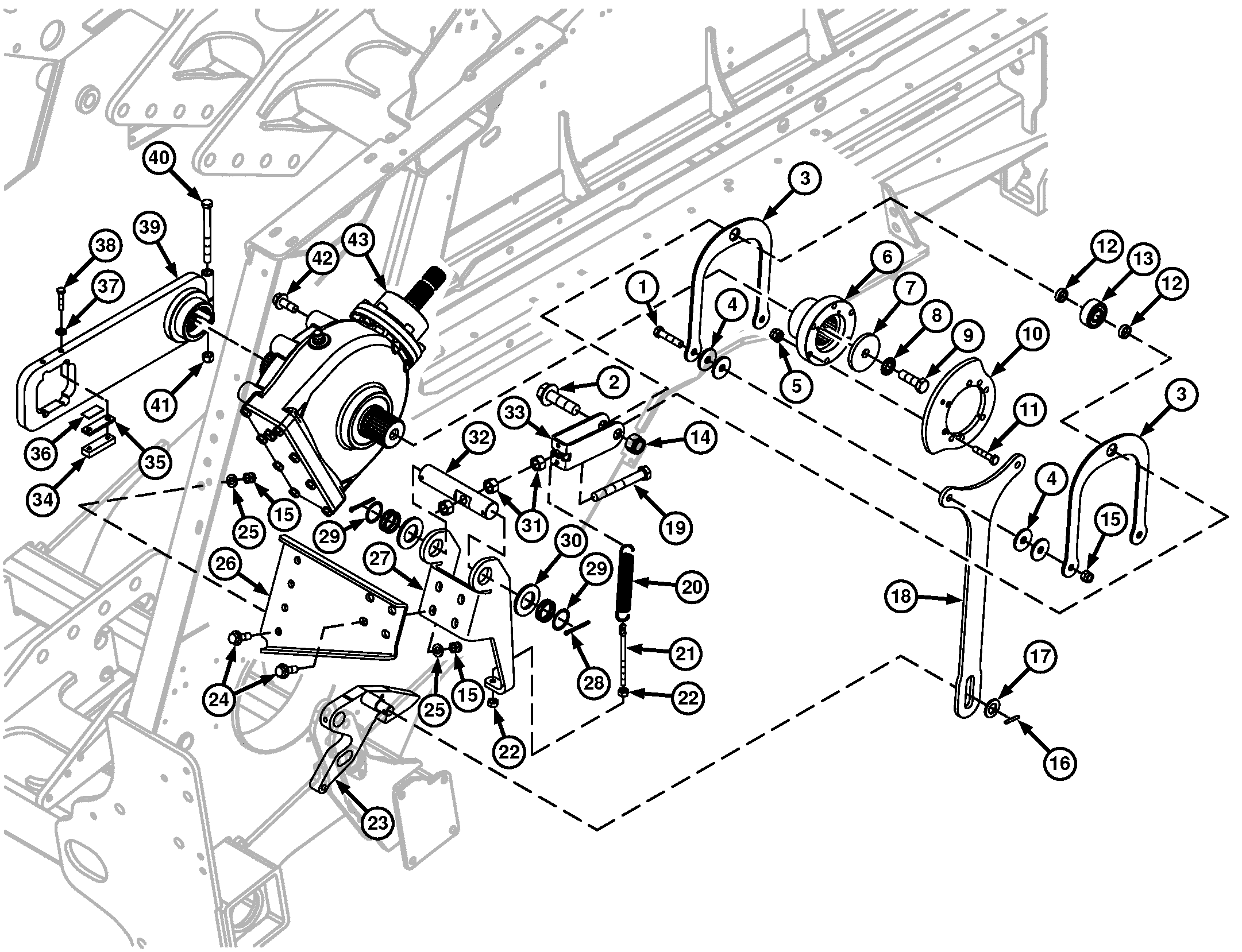

L1533 Baler

E76227-UN-16JUL14

1 - Cap Screw (2 used)

2 - Cap Screw

3 - Feed Timing Plate (2 used)

4 - Washers (8 used)

5 - Lock Nut (6 used)

6 - Hub

7 - Washer

8 - Spring Washer

9 - Cap Screw

10 - Cam

11 - Cap Screw (6 used)

12 - Spacer (2 used)

13 - Roller

14 - Lock Nut

15 - Lock Nut (10 used)

16 - Spring Pin

17 - Washer

18 - Timing Arm

19 - Cap Screw

20 - Spring

21 - Eyebolt

22 - Nuts (2 used)

23 - Hook

24 - Cap Screws (8 used)

25 - Washers (8 used)

26 - Feeder Cam Bracket

27 - Cam Roller Bracket

28 - Spring Pin (2 used)

29 - Shims (as required)

30 - Washer (2 used)

31 - Nuts (3 used)

32 - Pin

33 - Plate

34 - Bar (2 used)

35 - Plate (2 used)

36 - Shim (2 used)

37 - Washers (4 used)

38 - Cap Screws (4 used)

39 - Drive Arm

40 - Cap Screw

41 - Lock Nut

42 - Cap Screw (6 used)

43 - Lower Knotter Gear Case

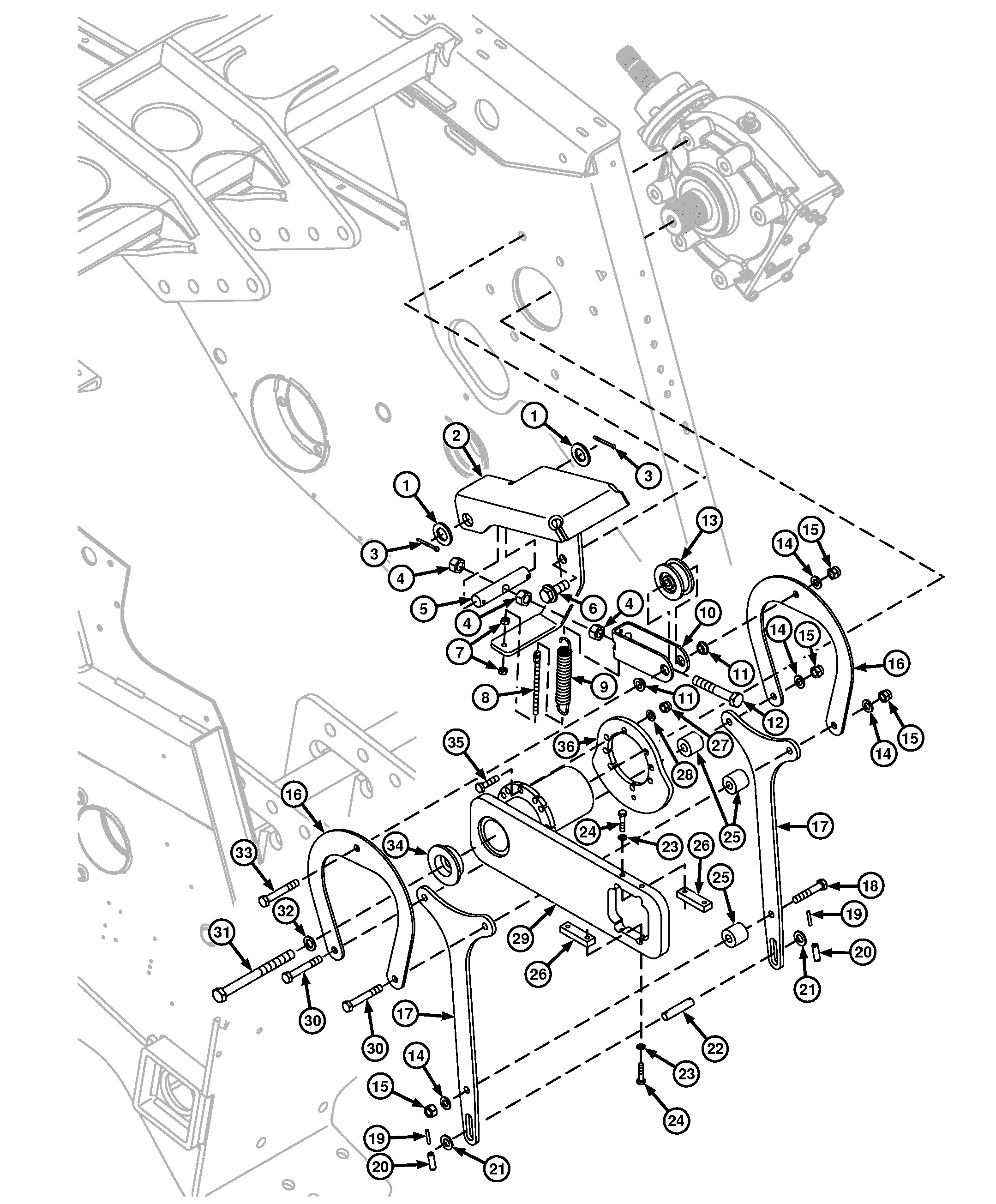

L1534 Baler

E76226-UN-21JUL14

1 - Washer (2 used)

2 - Timing Support Cover

3 - Cotter Pin (2 used)

4 - Nut (3 used)

5 - Pin

6 - Cap Screw (6 used)

7 - Nut (2 used)

8 - Eyebolt

9 - Spring

10 - Roller Plate

11 - Bushing (2 used)

12 - Cap Screw

13 - Roller

14 - Washer (4 used)

15 - Lock Nut (4 used)

16 - Timing Plate (2 used)

17 - Timing Arm (2 used)

18 - Cap Screw

19 - Inner Spring Pin

20 - Outer Spring Pin

21 - Washer (2 used)

22 - Pin

23 - Washer (4 used)

24 - Cap Screw (4 used)

25 - Spacer (3 used)

26 - Bar (2 used)

27 - Lock Nut (4 used)

28 - Washer (4 used)

29 - Crank

30 - Cap Screw (2 used)

31 - Cap Screw

32 - Washer

33 - Cap Screw

34 - Bushing

35 - Cap Screw (4 used)

36 - Cam
