Automatic Grease System Schematics

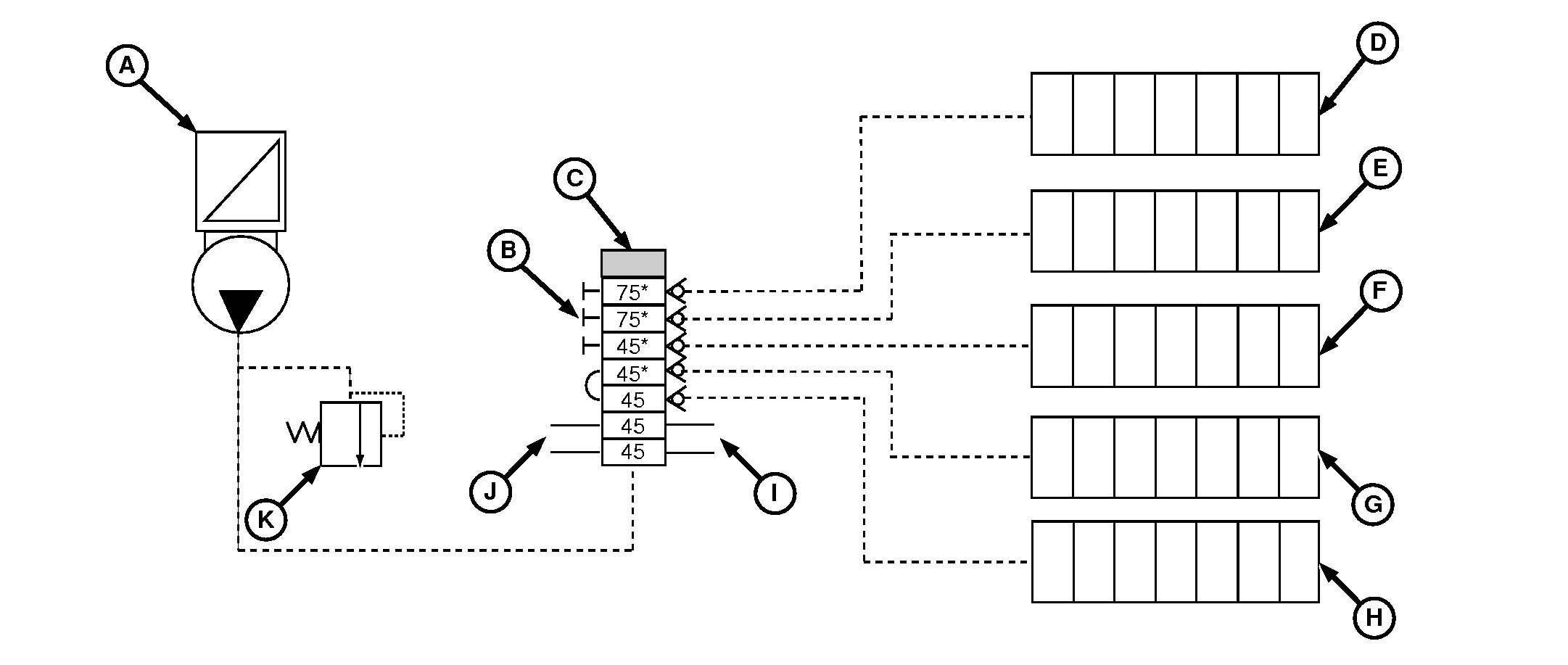

Main Circuit:

E77633-UN-13NOV14

A - Electric Grease Pump

B - Main Divider Block

C - Grease Sensor

D - Upper Knotter Divider Block

E - Lower Knotter Divider Block

F - Divider Block, Left

G - Divider Block Plunger Rods and Rollers

H - Divider Block, Right

I - Chain, Right

J - Chain, Left

K - Pressure Release Valve

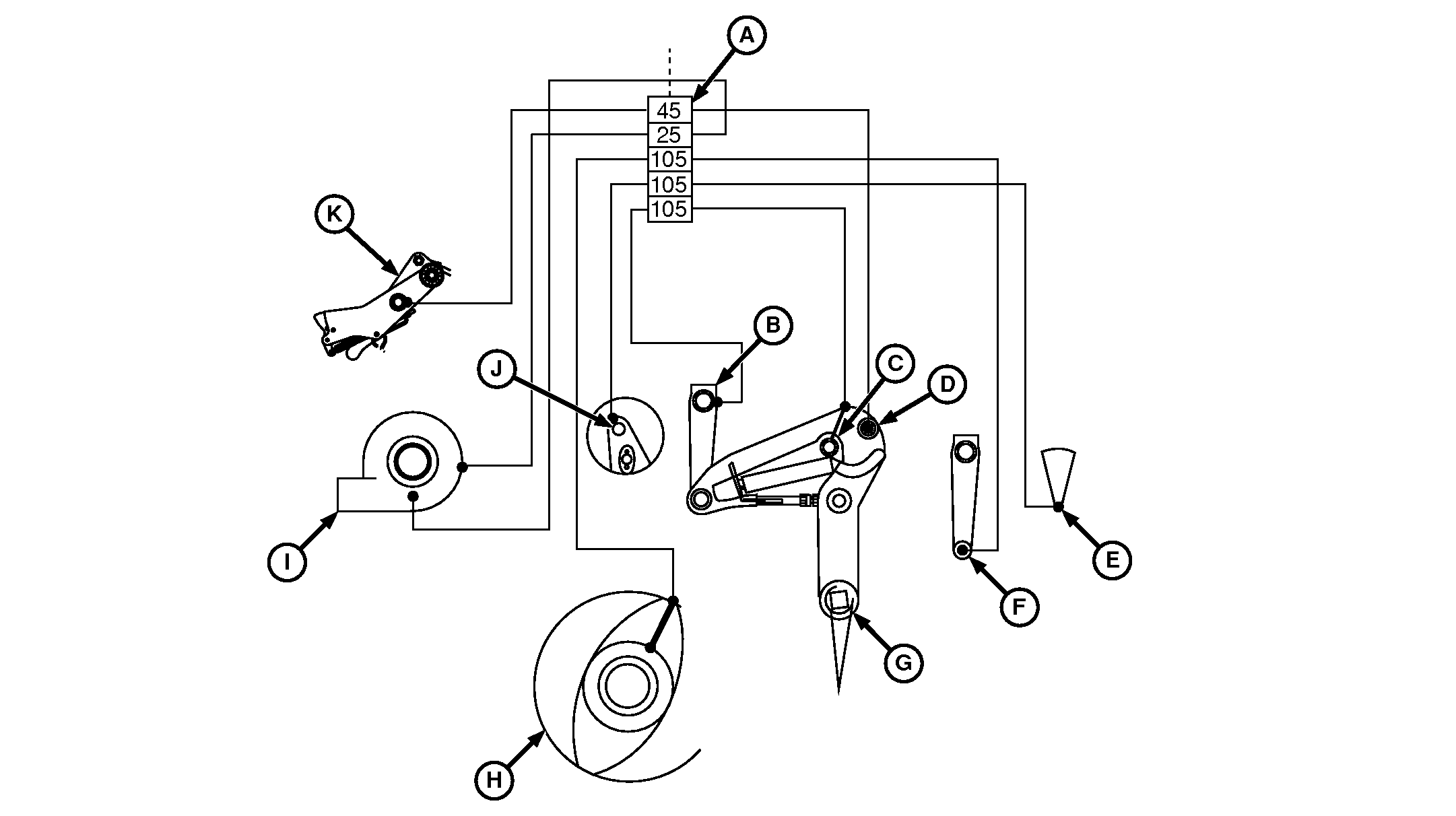

Divider Block, Left:

E77634-UN-13NOV14

A - Divider Block, Left

B - Swing Axle Bearing

C - Drive Axle Bearing

D - Pivot, Feeder Fork Arms

E - Pivot, Measuring Plates

F - Roller Swing Crank

G - Feeder Fork

H - Rotor Bearing

I - Blower

J - Pivot, Switch Hook

K - Trip Lever

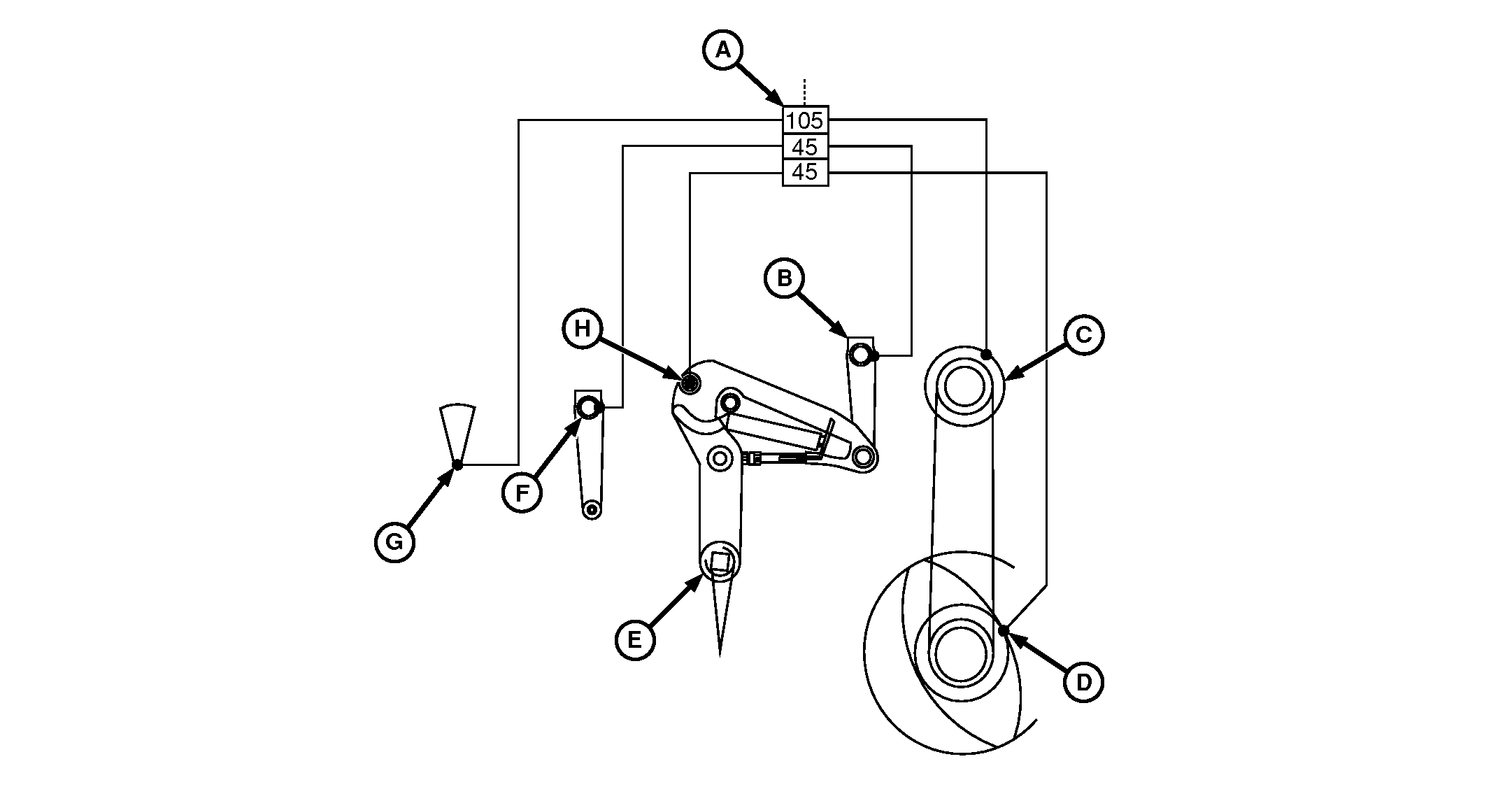

Divider Block, Right:

E77635-UN-13NOV14

A - Divider Block, Right

B - Swing Axle Bearing

C - Rotor Drive Shaft Bearing

D - Rotor Bearing

E - Feeder Fork

F - Middle Bearing Swing Axle

G - Pivot, Measuring Plates

H - Pivot, Feeder Fork Arms

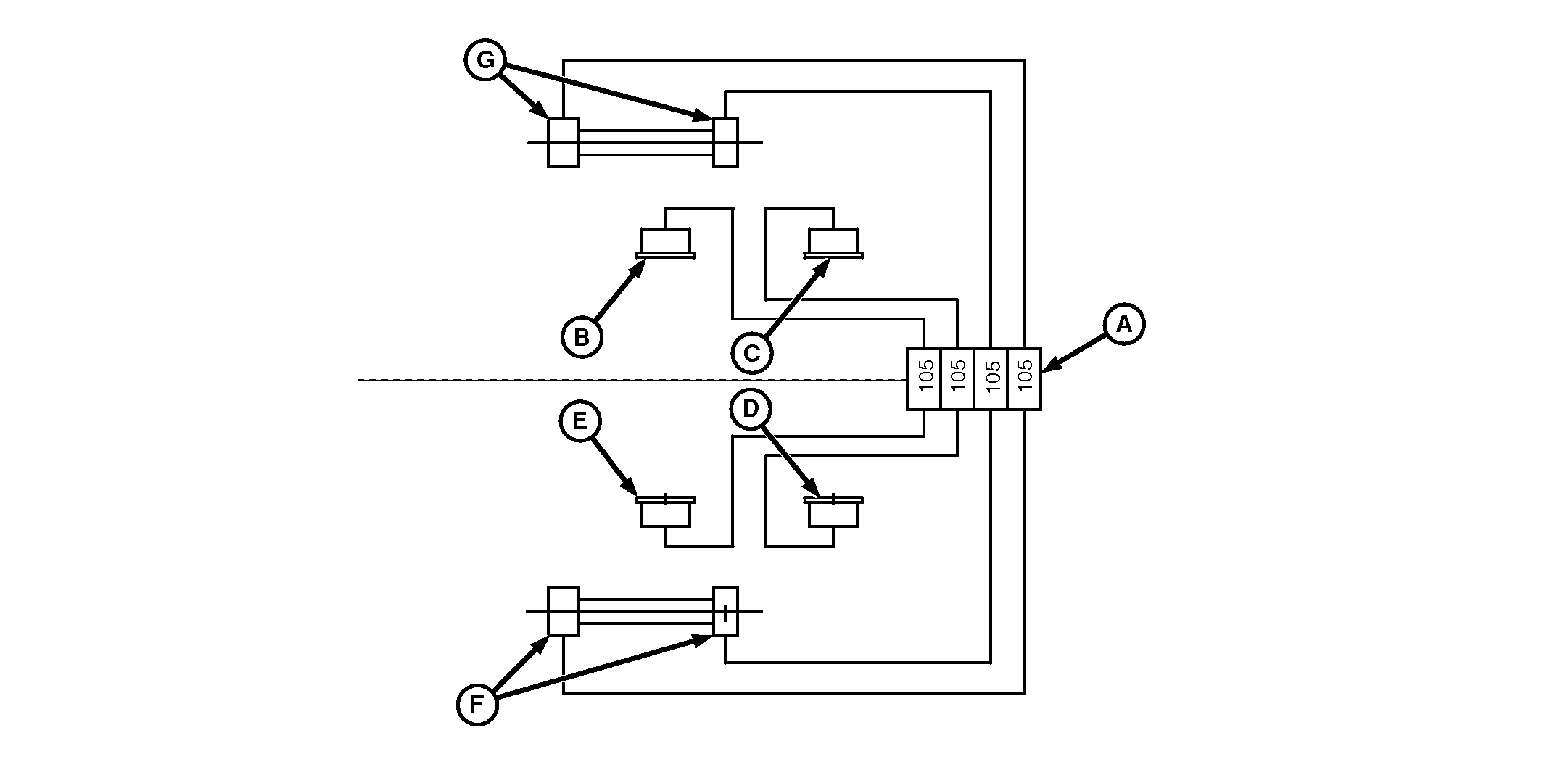

Plunger Divider Block:

E77636-UN-18DEC14

A - Plunger Divider Block

B - Left-Hand Rear Plunger Arm

C - Left-Hand Front Plunger Arm

D - Right-HandFront Plunger Arm

E - Right-Hand Rear Plunger Arm

F - Left-Hand Plunger Rollers

G - Right-Hand Plunger Rollers

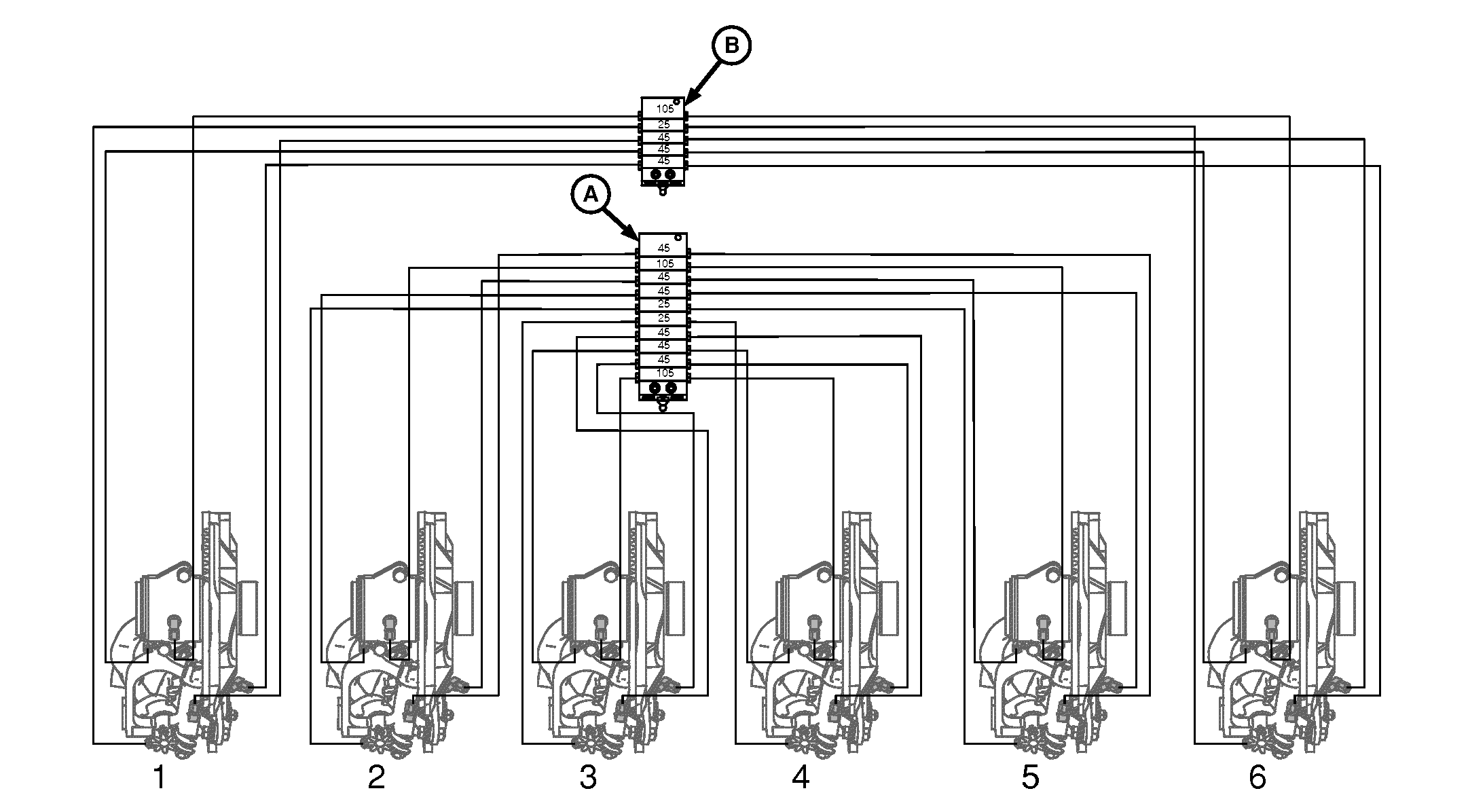

Knotter Divider Block:

E77637-UN-13NOV14

A - Upper Knotter Divider Block

B - Lower Knotter Divider Block

K1 - Knotter 1

K2 - Knotter 2

K3 - Knotter 3

K4 - Knotter 4

K5 - Knotter 5

K6 - Knotter 6
