Bleed Automatic Grease System

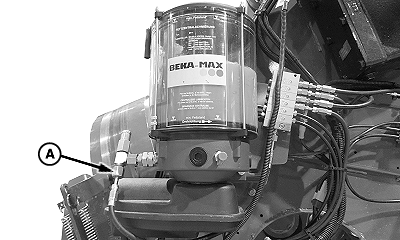

E73433
E73433-UN-18MAR14

A - Main Grease Line

If grease reservoir is empty or pump piston was replaced, it is necessary to bleed pump system free of air. Proceed as follows:

  1. Disconnect main grease line (A) from pump.

  2. Engage grease system. (Automatic Greasing System in Operate Baler Application.)

  3. Let grease flow until no air remains in pump system.

  4. Power down pump by pressing auto grease power button on settings screen or by leaving grease management settings screen.

  5. Connect main grease line (A) to pump.

  6. Cycle grease pump

SF04007,0000A33-19-20160104
