Telescoping Driveline

Do not use a hammer. Do not connect telescoping driveline with use of a hammer or other equivalent tools. By using these tools, telescoping driveline can get seriously damaged. A damaged telescoping shaft can cause both machine and tractor damage.

If telescoping driveline is too long, it can seriously damage drive bearings of both tractor and machine.

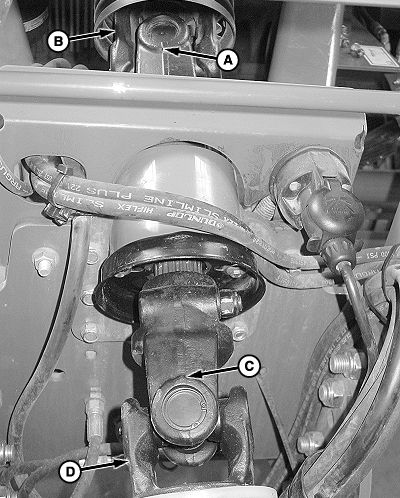

1. Install telescoping driveline with correct orientation. Rear yoke (A) of secondary driveline (B) must be aligned with front yoke (C) of primary driveline (D) for proper operation. Failure to align yokes will result in reduced life of driveline.


   E78707-UN-18AUG15

   PTO Shields Removed for Illustration Purposes

   A - Rear Yoke

   B - Secondary Driveline Yoke

   C - Front Yoke

   D - Primary Driveline

   Make sure tractor drawbar length is set correctly for PTO (see Adjust Tractor Drawbar in Preparing the Tractor section).

---




2. Connect machine to tractor drawbar (see Attaching and Detaching section).

3.

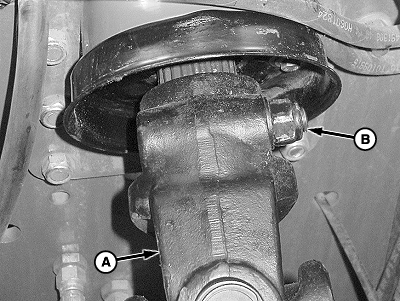

   E78708-UN-18AUG15

   A - PTO Driveline

   B - Threaded Pin and Lock Nut, M16

   Install PTO driveline (A) using threaded pin and lock nut (B).

   Tighten lock nut to specification.

   Lock Nut	Torque	220 N·m (162 lb-ft)

---
