Adjust Pickup Floating

ZX1046012-UN-03JAN12

ZX1046013-UN-03JAN12

A - Valve lever

B - Locking plate

1 - Pickup position

2 - Closed position

Two springs, located on the pickup hydraulic cylinders, ensure the floating of the pickup.

Adjust the spring tension on sides of the pickup as follows:

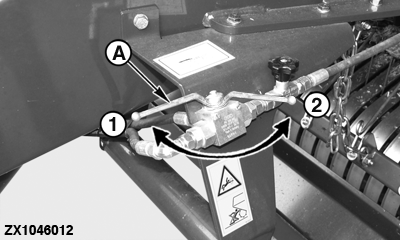

1. Place valve lever (A) to pickup (open) position (1) as shown.

2. Fully raise the pickup with relevant selective control valve lever.

3. Place valve lever (A) to jackstand (closed) position (2).

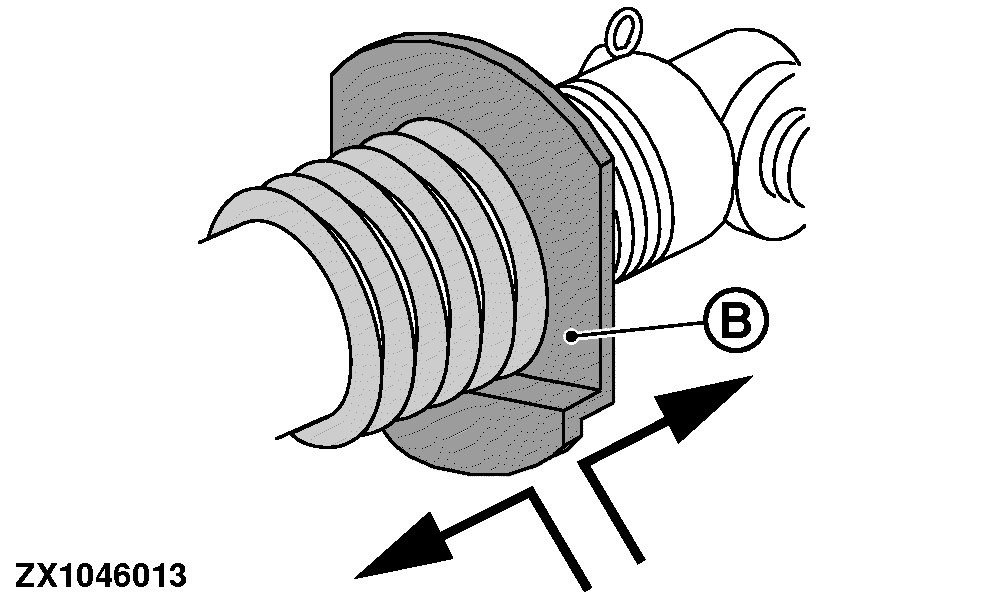

4. Move locking plate (B) toward the cylinder rod to increase spring tension.

   Move locking plate (B) toward the cylinder barrel to decrease spring tension.

   The pickup floating is correctly adjusted when it can be lifted by hand. Make sure that the spring tension is the same on both sides of the pickup.
