Replace Precutter Knives with Knife Slot Filler Plates

E80019-UN-25SEP15

ZX1046038-UN-03JAN12

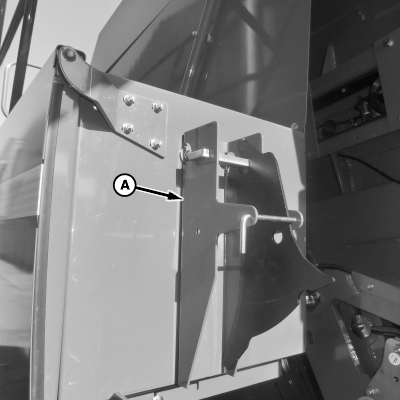

A - Storage Location

Unused knives and knife slot filler plates are stored at front of right-hand side twine box at location (A). Retain unused knives or knife slot filler plates using locking pin.

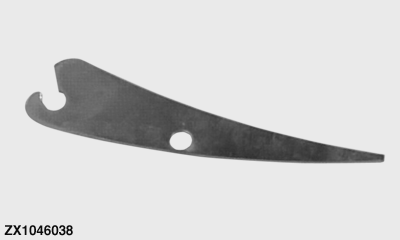

When a knife is no longer required, install knife slot filler plate into knife drawer.

When knives are removed, knife slot filler plates can be installed instead.

Knife slot filler plates aids in keeping knife slots clean when precutter is not in use. Knife slot filler plates ensure a uniform crop flow across cutting unit floor.

To install knife slot filler plates:

• Switch OFF knife guide cleaning process. (See Operate Baler Application section.)
• Install knife slot filler plates in same way knives are removed and installed. (See Remove or Install Precutter Knives [10-, 15-, or 23-Knife Precutter] in this section.)
• Store unused knives and filler plates in storage location (A). Install locking pin to retain knives and plates.
