Check Hydraulic System Oil Level

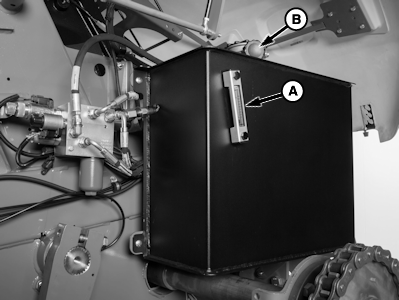

E75699-UN-08MAY14

A - Sight Glass

B - Filter Element

Check level of hydraulic oil at sight glass (A).

• At a pressure of 0 bar (0 psi)
• With bale chamber cylinders retracted
• After machine has run for 5 minutes

Hydraulic oil level is correct when top of oil is at top of sight glass (A).

If necessary, refill at filter element (B) with specified hydraulic oil (see Lubricants and Capacities section).
