Attach to Tractor Hydraulic System

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before connecting or disconnecting hydraulic lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage the hydraulic system.

Always refer to the tractor Operator’s Manual to operate the selective control valves and their relevant SCV levers.

ISO hydraulic couplers are standard with the baler. If they do not fit the tractor, see your John Deere dealer.

ZX1046051
ZX1046051-UN-03JAN12

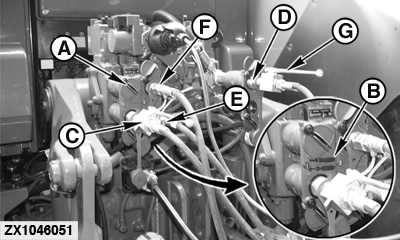

John Deere 6000 Series Tractor Shown

E77821
E77821-UN-17DEC14

A - Dust Covers

B - Symbols

C - Pickup—Yellow Ring

D - Steered Axle—Green Ring

E - Bale Ejector, Bale Chute, and Precutter—Blue Ring

F - Bale Ejector, Bale Chute, and Precutter—White Ring

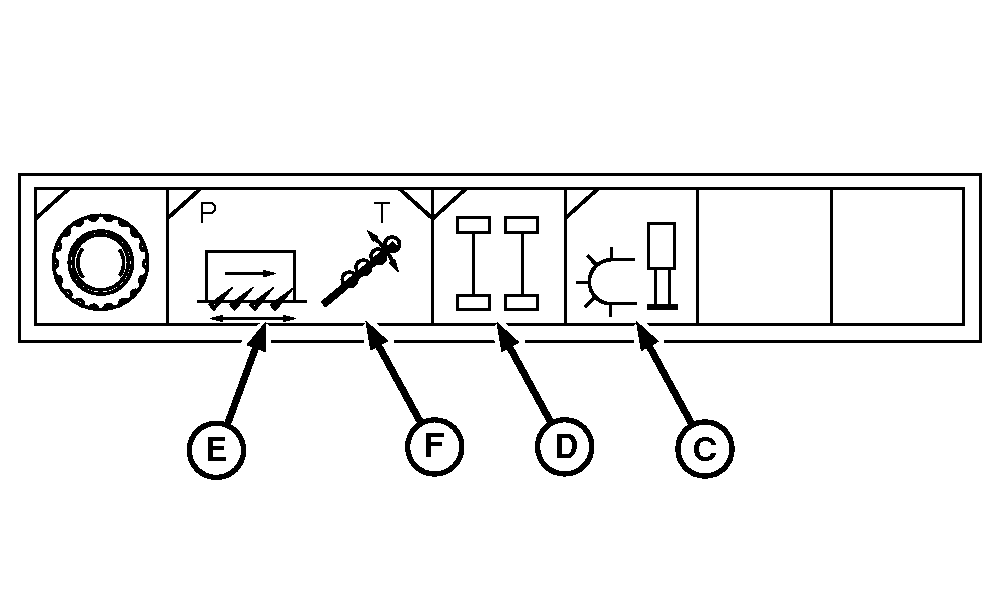

All hydraulic hoses with connection to the tractor are marked with colored rings. The meaning of the colors is indicated on the decal, placed at the support at the drawbar.

  1. Open dust covers (A).

  2. Check to be sure symbols (B) on receptacle identification plate, indicating cylinder movement, match cylinder travel direction.

  3. Insert pickup lift hydraulic hose (C) with YELLOW ring into Single Acting SCV receptacle.

    On tractor with Double Acting SCV: Insert pickup lift hydraulic hose (C) with YELLOW ring into EXTENDED side receptacle (Operate with control lever in float position).

  4. Insert steered axle hydraulic hose (D) with GREEN ring into Single Acting SCV receptacle, if equipped with tandem axle.

    Keep the shut off valve (G) open during field operation. Close the shut off valve (G) for road transport. Refer to Transporting the Baler section.

    On tractor with Double Acting SCV: Insert steered axle hydraulic hose (D) with GREEN ring into RETRACTED or EXTENDED side receptacle (Operate with control lever in float position).

  5. Insert bale ejector – Bale chute – Precutter hydraulic hose (E) with BLUE ring into EXTENDED side receptacle of a double acting SCV.

    Insert bale ejector – Bale chute – Precutter hydraulic hose (F) with WHITE ring into RETRACTED side receptacle of the same double acting SCV.

  6. Push hoses firmly into tractor receptacles.
