Connect to Tractor Electrical System

Check cables and connections. Before connecting check all electrical cables for damages. After connecting check electrical cables for tight connection. Damaged or incorrect connected plugs can cause unpredictable movements of machine which may result in serious damage and injuries.

Connect plug to a 12 V system only.

Check cable routing. Take care of enough free space to avoid cables from getting stretched, twisted, or torn. Stretched, twisted, and torn cables can lead to unpredictable movements of machine that may cause serious damage and injuries.

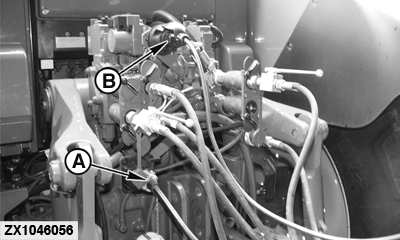

ZX1046056-UN-03JAN12

A - 9-pole plug

B - 7-pole plug

Connect 9-pole ISO 11783 plug (A) of baler control box wiring harness to tractor ISOBUS implement breakaway connector.

If your tractor is not equipped with a 9-pole ISO 11783 plug see your John Deere dealer for additional equipment needed to install the ISO 11783 compliant plug and communication system.

Connect 7-pole ISO 1724 plug (B) of baler road light wiring harness to tractor seven-terminal socket.
