Use of Grease

Packer Clutch

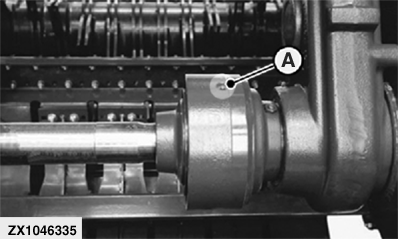

ZX1046335-UN-12JAN12

A - Grease Fitting

Capacity: 0.2 kg (7.05 oz)

Lithium grease is recommended for packer clutch.

Apply grease at grease fitting (A).

Lubricate only this clutch if it is used. If clutch never slips, do not lubricate it.
