Gear Oil

TS1653-UN-14MAR96

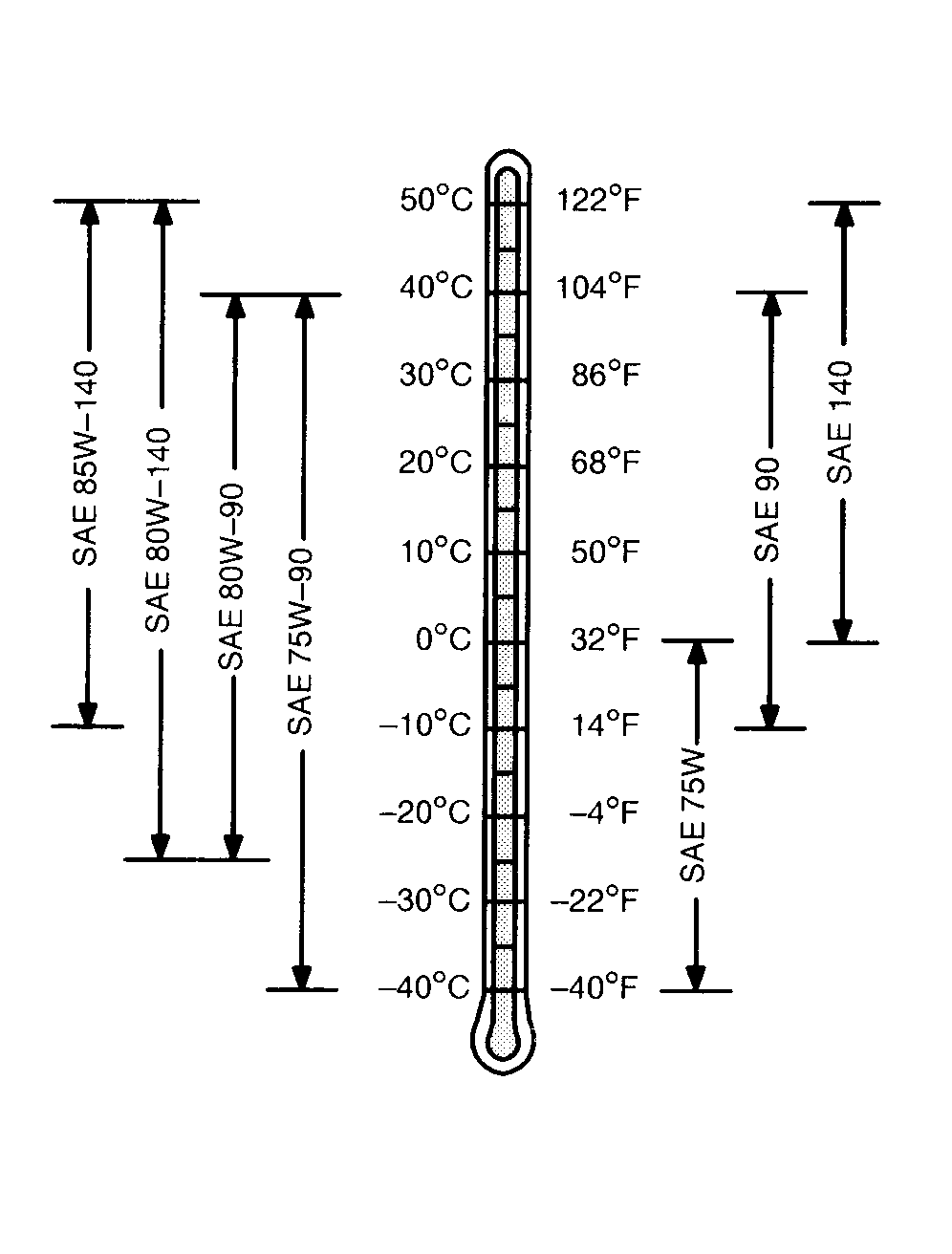

Oil Viscosities for Air Temperature Ranges

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

• John Deere GL-5 Gear Lubricant
• John Deere EXTREME-GARD™

Other oils may be used if they meet the following:

• API Service Category GL-5
