Use of Transmission and Hydraulic Oil

ZX206168-UN-06NOV13

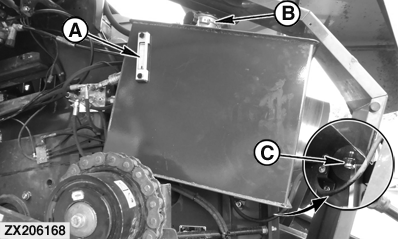

A - Sight Glass

B - Filter

C - Oil Drain Plug

Capacity: 60 L (15.8 gal)

Check level of hydraulic oil via the sight glass (A):

• At a pressure of 0 bar (0 psi).
• With press chamber cylinders in.
• After machine ran for 5 minutes.

Oil level must be up to upper sight glass (A).
