Raise and Lower Pivoting Cover Support

E75778-UN-15MAY14

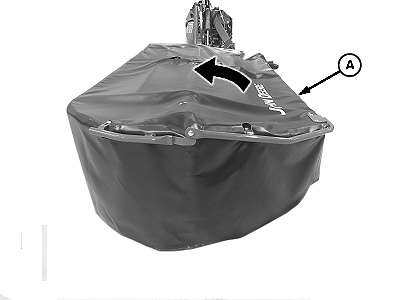

Field and Operating Position

E75779-UN-16MAY14

Service and Transport Position

A - Pivoting Cover Support

B - Latch

C - Special Wrench, 18 mm

CAUTION: To help prevent severe injury or death to you or someone else;

• Never operate mower with cover in service and transport position.
• Do not lean against or sit or stand on cover or framework.
• Engage tractor parking brake and place transmission in "Park", disengage PTO and shut off engine and remove key

Service and Transport Position

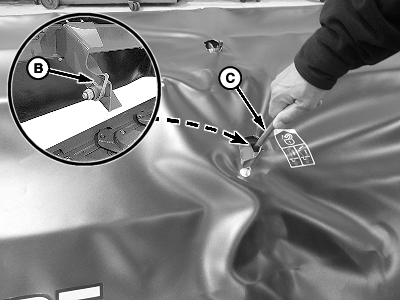

1. Using special wrench (C), insert through hole in center of machine as shown.

2. Pry latch (B) to release cover support and raise pivoting cover (A).

3. Fold cover support onto top of rigid cover support.

4. Return special wrench to storage location.

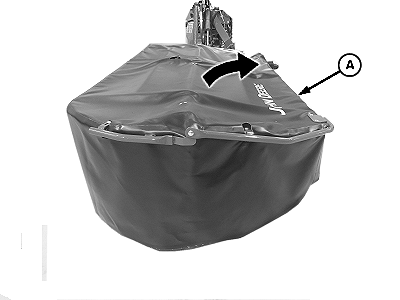

Field and Operating Position

E75780-UN-15MAY14

Field and Operating Position

A - Pivoting Cover Support
