Every 10 Hours

Chains

TS284-UN-23AUG88

Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.

Lubricate chains immediately after operation when the chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration, resulting in longer chain life.

Tension Arm Pivots

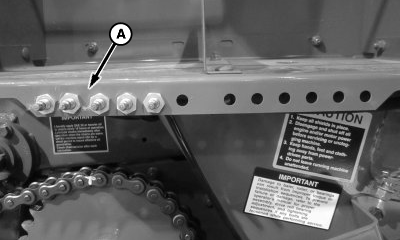

E85595-UN-14NOV17

Remote Lubrication Fittings

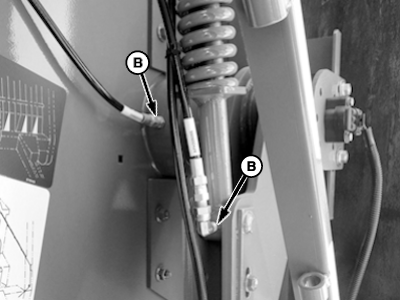

E83516-UN-13JUN17

Tension Arm Pivot (Right-Hand Side)

A - Lubrication Fittings

B - Tension Arm Pivot

Apply grease to remote lubrication fittings (A) for the tension arm pivots (B).

Tension Cylinder Rods

E85595-UN-14NOV17

Remote Lubrication Fittings

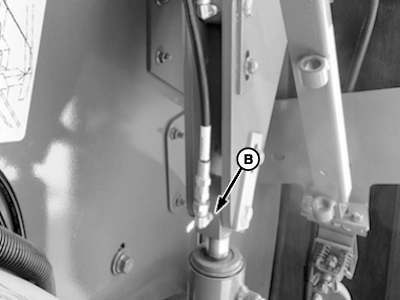

E83518-UN-13JUN17

Tension Cylinder Rod End (Right-Hand Side)

A - Lubrication Fittings

B - Cylinder Rod End

Apply grease to the remote lubrication fitting (A) for the tension cylinder rods (B).

Push Bar Shock Absorber and Spring Bolt (If Equipped)

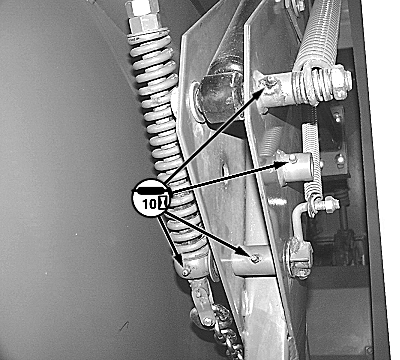

E48339-UN-10JUL00
