Every 30 Hours
Pickup Lift Crank
E47610-UN-07JAN00

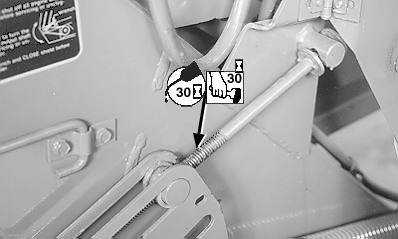

Pickup Lift Crank Threads

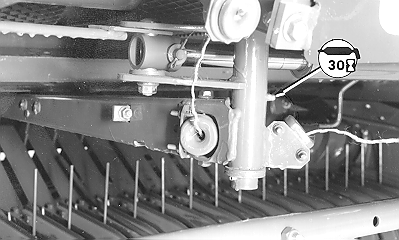

Lubricate the lift crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.Twine Arms and Twine Actuator Rod
Twine arms can move unexpectedly. Keep hands out of
the twine arm path to avoid crushing. Turn off power BEFORE servicing
twine arms or twine cutter mechanism.
Stay out of the path of twine arms at all times when power to twine arm is ON.
E47598-UN-07JAN00
E39603-UN-20NOV95
460R Round Baler
E39777-UN-22FEB96
560R Round Baler
Clean off foreign material or crop buildup from actuator rod.

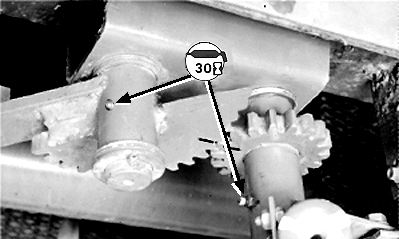

Lubricate the twine arms and twine actuator rod using John Deere Polyurea SD Grease
Pickup Drive Idler Pivot
E83519-UN-13JUN17
E83520-UN-13JUN17
Pickup Drive Idler Pivot (Right-Hand Side)
(Shield Removed for Illustration Purposes)
A - Lubrication Fitting
B - Idler Pivot

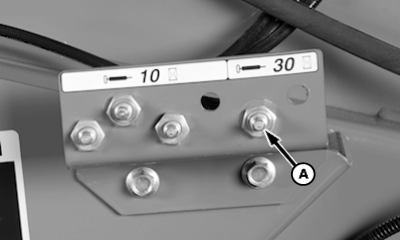

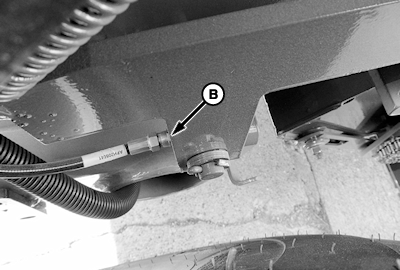

Apply grease to the remote lubrication fitting (A) for the pickup drive idler pivot (B).
For the MegaWide™ HC2 Feed System, grease goes to the rotor drive idler.

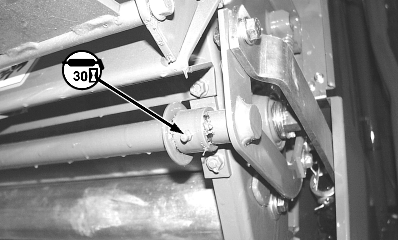

Net Wrap Counterknife Arm Pivot (If Equipped)
E48340-UN-12JUL00
Right-Hand Side Shown
Do not over lubricate the counterknife arm pivots. Over lubrication results in grease getting onto the rubber roll, which causes the net wrap material to stick and wind around the roll.
Lubrication fittings are on both the left and right-hand sides.

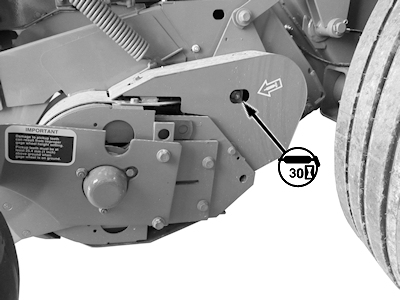

Pickup Idler Arm (MegaWide™ Plus Only)
E61070-UN-16MAR12
Left-Hand Side
Pickup Lift Bellcrank Pivot
E66653-UN-13JUL12
E83521-UN-13JUN17

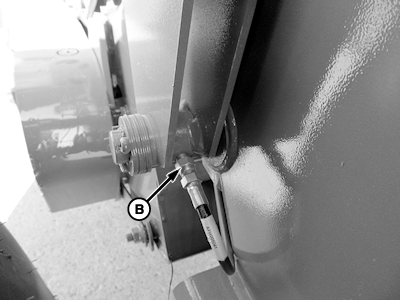

Pickup Lift Bell Crank Pivot (Left-Hand Side Shown)
A - Lubrication Fitting
B - Bell Crank Pivot

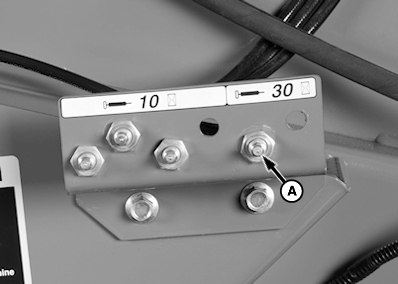

Apply grease to the remote lubrication fitting (A) for the pickup lift bell crank pivot (B).
For the MegaWide™ HC2 Feed System, grease goes to the rotor pickup drive chain idler.
PTO Driveline (MegaWide™ Plus Pickup Only)
Regular greasing with the proper amount of grease is important for maintaining driveline life and quiet operation.
Use only John Deere Polyurea grease.

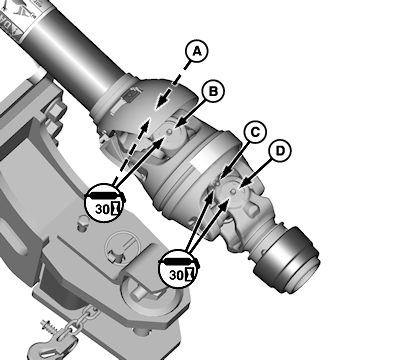

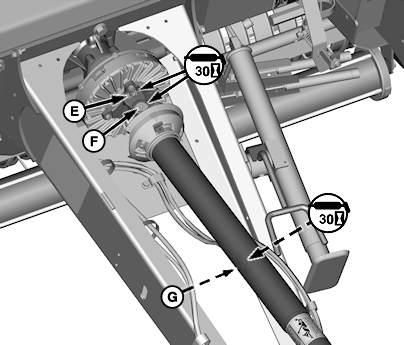

Lubricate fittings (A—G) with the amount of grease listed after every 30 operating hours. Only use John Deere SD Polyurea Grease.
E62422-UN-09AUG12
E62423-UN-09AUG12
A - Fitting (5 pumps)
B - Fitting (5 pumps)
C - Fitting (30 pumps)
D - Fitting (5 pumps)
E - Fitting (5 pumps)
F - Fitting (5 pumps)
G - Fitting (10 pumps)
PTO Driveline (MegaWide™ HC2 Pickup Only)
Regular greasing with the proper amount of grease is important for maintaining driveline life and quiet operation.

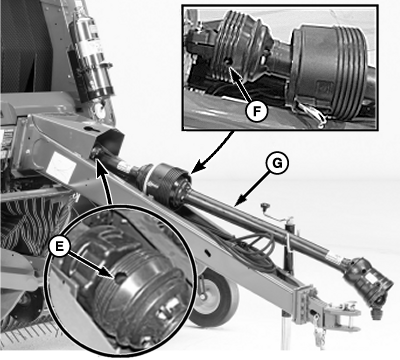

Raise the PTO shield to access fitting (E). Release latches and slide the center shield cone back to access fitting (F).
Lubricate fittings (A—G) with the amount of grease listed after every 30 operating hours. Only use John Deere SD Polyurea Grease.
E62422-UN-09AUG12
E83514-UN-10AUG17
A - Fitting (5 pumps)
B - Fitting (5 pumps)
C - Fitting (30 pumps)
D - Fitting (5 pumps)
E - Fitting (5 pumps)
F - Fitting (5 pumps)
G - Fitting (10 pumps)
|
