Install Left-Hand Upper Drive Roll Bearing

To prevent bearing failure, always loosen the three RIGHT-HAND SIDE flange mounting bolts (A) before tightening left-hand side (drive side) center bolt (B). Adjust and tighten right-hand side mounting bolts per this instruction AFTER left-hand side is tightened.

1.
   E67574-UN-27AUG12

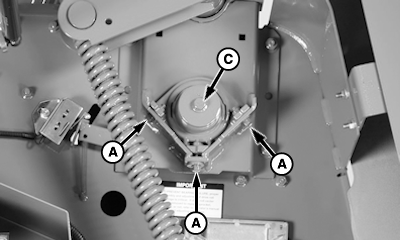

   Right-hand Upper Drive Roll Bearing


   E67575-UN-27AUG12

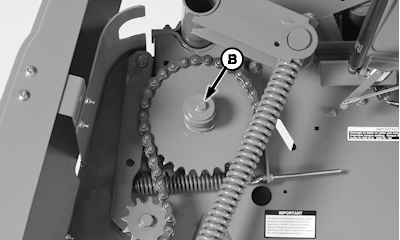

   Left-hand Upper Drive Roll Bearing

   A - Cap Screw, M8 (3 used)

   B - Cap Screw, M12 (Drive Side)

   C - Cap Screw, M12 x 80 mm

   Right-hand side of baler: Loosen three flange mounting cap screws (A) and cap screw (C).

---




2. Loosen and remove cap screw (B) on the left-hand side of baler.

3. Remove drive chain.

4. Carefully remove washers and sprocket, noting the position and number of washers removed at each location.

5. Remove flange nuts.

6. Remove and discard bearing.

7.
   E67561-UN-27AUG12

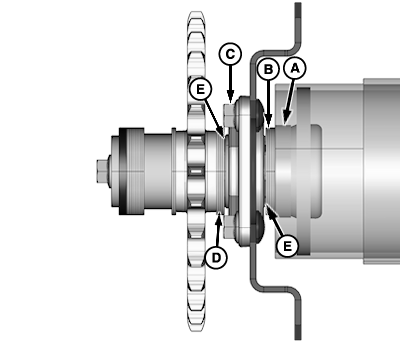

   A - Chamfered Spacer

   B - Washer (5 used, as required)

   C - Flanged Nut

   D - Washer (4 used, as required)

   E - Washer, 45.2 x 57.2 x 0.9 mm (each side of bearing)

   Install chamfered spacer (A) (chamfer toward roll), washers (B), washer (E), and bearing on shaft. Snug four flange nuts (C) and pull roll firmly to left-hand side of baler.

---




8. Center roll side-to-side:

   • Center roll side-to-side.
   • Measure from the outer rubber strip to the side sheet on both sides to check roll centering.
   • The difference between the two dimensions must be 6 mm (0.24 in) or less.
   • If needed, add or remove washers between the roll and the left-hand bearing to center the roll.
   • Washer (E) must be on both sides of the bearing.



9. Tighten flange nuts (C) to specifications.

   Flange Nut and Bolt	Torque	95 N·m (70 lb·ft)

10. Install sprocket and four washers (D) and one washer (E). Be sure that washer (E) is next to bearing on both sides.

11.
    E58846-UN-29JUL10

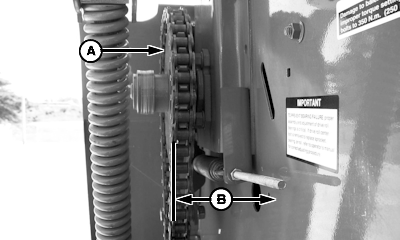

    A - Outer Surface of Sprocket

    B - Clearance, 91 mm (3.58 in)

    Measure clearance (B) between the side sheet and the outer surface of sprocket (A). Clearance must be within specification.

    Side Sheet to Outer Surface of Sprocket	Clearance	91 mm (3.58 in)

---




12. If not within specification, add or remove washers between sprocket and bearing as necessary.

13.
    E67562-UN-27AUG12

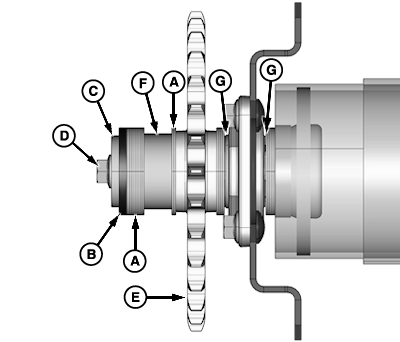

    A - Thin Washer (1.5 mm, as required)

    B - Washer, 6 mm (0.25 in)

    C - Washer, 13 x 57 x 6 mm

    D - Cap Screw, M12 x 75 mm

    E - Upper Drive Roll Sprocket

    F - Spacer

    G - Washer, 45.2 x 57.2 x 0.9 mm (2 used) (each side of bearing)

    Tap right-hand side of upper roll to remove all end play to left-hand side of baler.

---




14. Hold upper roll shaft to the left-hand side and push the upper drive roll sprocket (E) and washers inward.

15. To avoid center bolt loosening or hex knock, keep washers (A and B) centered on shaft. Ensure that washers do not rotate by hand. Joint must be clamped to eliminate hex knock.

    Install washers (A) and spacer (F) on shaft.

16. Install washers (A) between spacer and the end of the shaft, so that washers are flush with the end of the shaft, and add one washer (A). Add a 6 mm (0.25 in) washer (B). Install washer (C).

17. Install and tighten cap screw (D) to specification.

    Cap Screw	Torque	140 N·m (103 lb·ft)

18.
    E67519-UN-24AUG12

    A - Spacer

    B - Thin Washer (4 Used, As Required)

    C - Bearing

    D - Mounting Strap

    E - Cast Housing

    F - Cap Screw, M8 (3 used)

    G - Washer, 45.2 x 57.2 x 0.9 mm (2 used) (Each Side of Bearing)

    Right-hand Side of Baler: Make sure that there are enough washers (B) between the end of the roll tube and bearing to locate bearing cast housing correctly. Remove three M8 cap screws (F) to be installed later.

---




19. Hold bearing (C) tight against washers. Edge of mounting strap (D) must align within the step of the cast housing (E) in three locations.

20. Washers (G) must be next to bearing on both sides.

21.
    E54509-UN-15MAY06

    A - Cast Step

    B - Mounting Strap Edge

    C - Dimension, 1.5—4.5 mm (0.059—0.177 in)

    Add or subtract washers behind the bearing, if necessary, to locate cast step (A) correctly with mounting edge (B) in all three locations. Set mounting edge to specification (C).

    Cast Step	Distance	1.5—4.5 mm (0.059—0.177 in)

---




22. Washers (G) must be on each side of bearing.

23.
    E82582-UN-11APR17

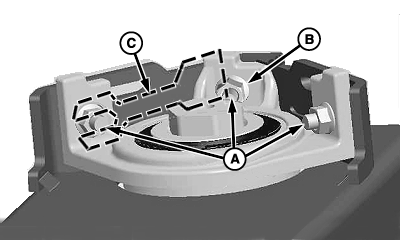

    A - Flanged Cap Screw (3 used)

    B - Flanged Nut (3 used)

    C - Shims

    Install three flange mounting cap screws (A) and nuts (B). Only tighten cap screws enough to get a light between the cast flange and the mounting strap. Some rotation (a light tap) of the cast flange around the outer race can be required to align flange correctly at all three locations. Do not tighten cap screws at this time.

---




24. Check to see if the roll is centered in the hole in the side sheet.

25. If necessary, loosen cap screws (A) and flange nuts (B) and insert shims (C) between the bearing mounting flange and the cast bearing flange to center the roll in the holes in the side sheet.

26. Do not tighten cap screws at this time.

27. Rolls must rotate freely. Check roll clearance through the hole in the side sheet.

    If the roll is equipped with wiper pins, it is permissible to grind drive roll wiper pins to 3 mm (0.12 in) minimum height.

    Spin the upper drive roll to verify clearance with the side sheet hole according to specifications. Add or remove shims or move the right-hand bearing plate, or grind the drive roll wiper pins, if equipped.

    Rollers to Side Sheet	Radial Clearance	1 mm (0.04 in)

28.
    E82583-UN-11APR17

    A - Washers

    B - Thick Washer

    C - Cap Screw, M12x 80

    D - Washer, 13 x 70 x 12 mm

    E - Washer, 45.2 x 57.2 x 0.9 mm (2 used)

    To avoid center cap screw from loosening or hex knock, keep washers (A and B) centered on shaft.

    Install one washer (E) and washers (A) between bearing and end of hex shaft, so washers are flush with end of shaft, and add one more washer. Add large thick washer (B). Washer (E) must be next to bearing.

---




29. Install cap screw (C) and end washer (D).

30. To prevent bearing failure, always tighten cap screw (C) before tightening flange mounting cap screws (A and B).

    Ensure that washers do not rotate by hand. Joint must be clamped to eliminate hex knock.


    E57566-UN-09JUL09

    A - Cap Screw, M8 (2 used)

    B - Cap Screw, M8

    C - Cap Screw, M12 x 80 mm

    Tighten cap screw (C) to specification.

    M12 Cap Screw	Torque	140 N·m (103 lb·ft)

---




31. Tighten middle flange mounting cap screw (B) first. Tighten flange mounting cap screws (A). Tighten all cap screws to specification.

    Cap Screw	Torque	40 N·m (30 lb·ft)

32. Check position of mounting edge to the cast step in three locations. If mounting edge does not align in the cast sets, repeat steps 19—31.

33. Reinstall and adjust drive chains.
