Adjust Baler Hitch

1.
   E62317-UN-04APR12

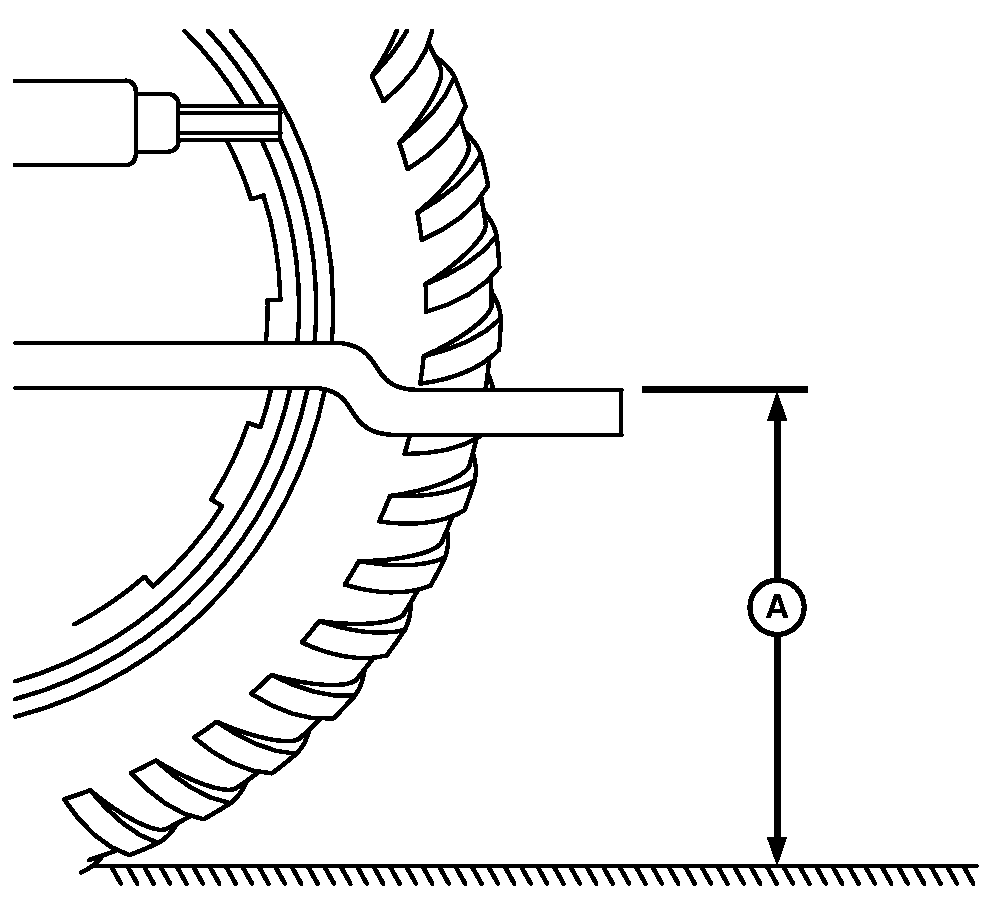

   A - Dimension

   With the tractor parked on level ground, measure the tractor drawbar dimension (A) from the top of the drawbar to the ground.

---




2. Baler hitches are factory installed in position 3.


   E60309-UN-13JUL11

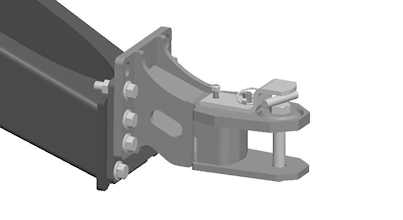

   Position 1


   E60310-UN-13JUL11

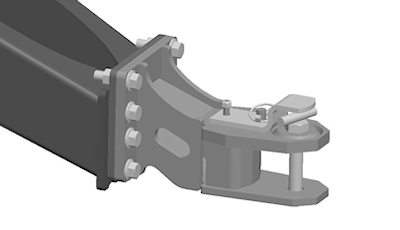

   Position 2


   E60311-UN-13JUL11

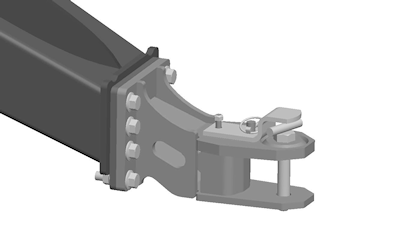

   Position 3 (Factory Setting)


   E60312-UN-13JUL11

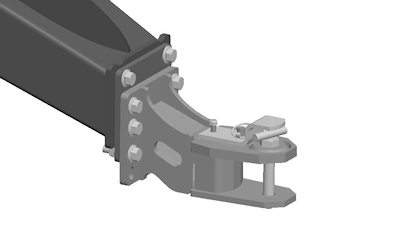

   Position 4

   Install the baler hitch in the position corresponding to the tractor drawbar height (A).

   MegaWide™ Plus Pickup	Drawbar Dimension (A)
   Position 1	533—559 mm (21—22 in)
   Position 2	483—508 mm (19—20 in)
   Position 3	406—457 mm (16—18 in)
   Position 4	330—381 mm (13—15 in)
   MegaWide™ HC2 Feed System	Drawbar Dimension (A)
   Position 1	Not Recommended
   Position 2	533—559 mm (21—22 in)
   Position 3	432—533 mm (17—21 in)
   Position 4	330—432 mm (13—17 in)

---




3.
   E83222-UN-05JUN17

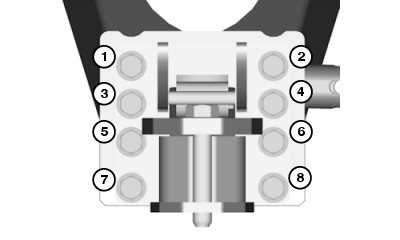

   Tightening Sequence

   Tighten hardware to specification using the sequence 1—8 as shown.

   Adjustable Hitch Hardware	Torque	350 N·m (258 lb·ft)

---
