Wrap Material Storage

1.

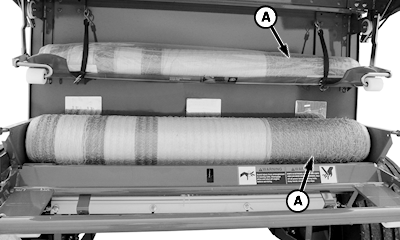

   E67178-UN-03AUG12

   A - Wide Green Stripe

   Load net wrap material rolls with the wide green stripe (A) on the net wrap on the right-hand side of the machine. Load B-Wrap material rolls with the striped end of the roll on the right-hand side of the machine.

---




2.

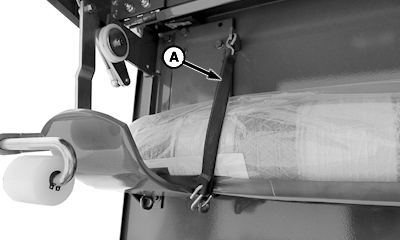

   E67179-UN-06AUG12

   A - Rubber Straps

   To secure the roll, stretch rubber straps (A) and hook them to the support brackets on the right and left-hand sides.

---




3.

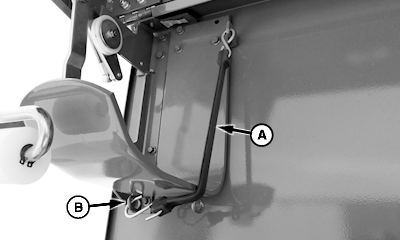

   E67180-UN-03AUG12

   A - Rubber Straps

   B - Support Brackets

   When the storage location is empty, make sure that the rubber straps (A) are attached to the support brackets (B). Do not let the straps hang free.

---




4.

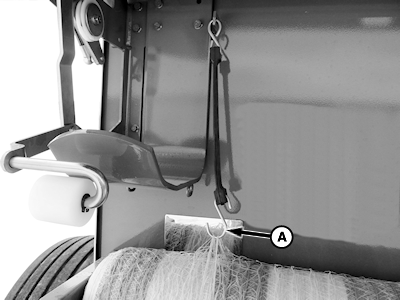

   E67181-UN-03AUG12

   A - S-hook (Hanging Free)

   If a rubber strap is allowed to hang free, the S-hook (A) can snag the net and ruin several hundred feet of material on the working roll.

---
