Remove and Install Roller Baffle (MegaWide™ Plus Pickup)

Remove Roller Baffle

1.

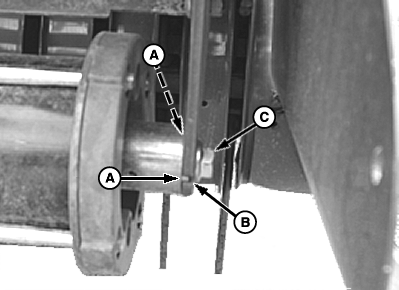

   E54716-UN-27JUN06

   A - Locating Pin (2 each side)

   B - Slot (Front and Back of Bracket)

   C - Flange Head Cap Screw

   Remove flange-head cap screw (C) from each end of roller.

---




2. Roller is heavy. Use care when removing locating pins from bracket. Support first end of roller before removing locating pins from the opposite side.

   Carefully remove locating pins (A) from slots (B). Lower end of the roller to a support while removing locating pins from the opposite side.

3. Remove locating pins from the other side and carefully remove the roller baffle.

Install Roller Baffle

1. Support roller so each end is approximately the same height.

   Install roller baffle locating pins (A) into slots (B) on the support bracket. Repeat on the opposite side.

2. Fasten each end of roller baffle with a flange-head bolt (C).

   If an adjustment is needed (see Adjust Roller Baffle Height in this section).
