Adjust Tractor Wheels

Adjust tractor wheels toward the upper end of specifications to improve:

  • Bale shape by crowding ends of pickup.
  • Ability to pick up crop.

If the tread setting is too narrow, the operator cannot make properly shaped bales without driving on the windrow. Driving on the windrow can cause bales with soft ends and loose twine. (See Make a Bale with Bale Shape Indicators and Guidelines to Form a Good Bale in Operating Baler Application section.)

E67206
E67206-UN-07AUG12

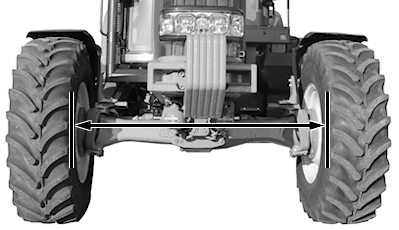

Adjust the front wheels to provide an inside tire-to-tire dimension as specified in the following table.

Front Wheel Spacing

Baler Model

Tire-to-Tire Inside Dimension

460R

1372—1524 mm (54—60 in)

560R

1676—1829 mm (66—72 in)

E67207
E67207-UN-07AUG12

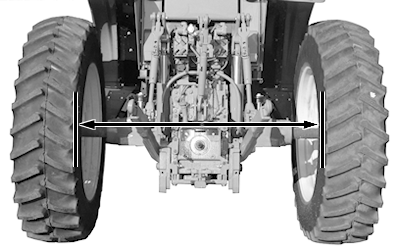

Adjust rear tractor wheels to provide an inside tire-to-tire dimension as specified in the following table. To prevent machine damage, do not exceed outside dimension limitations.

Rear Wheel Spacing

Baler Model

Tire-to-Tire Inside Dimension

460R

1372—1524 mm (54—60 in)

Outside dimension not to exceed 2591 mm (102 in)

560R

1676—1829 mm (66—72 in)

Outside dimension not to exceed 2743 mm (108 in)

Prevent damage to the PTO driveline, tractor tires, and baler frame. Do not make short turns or cause the baler to jackknife while backing.
