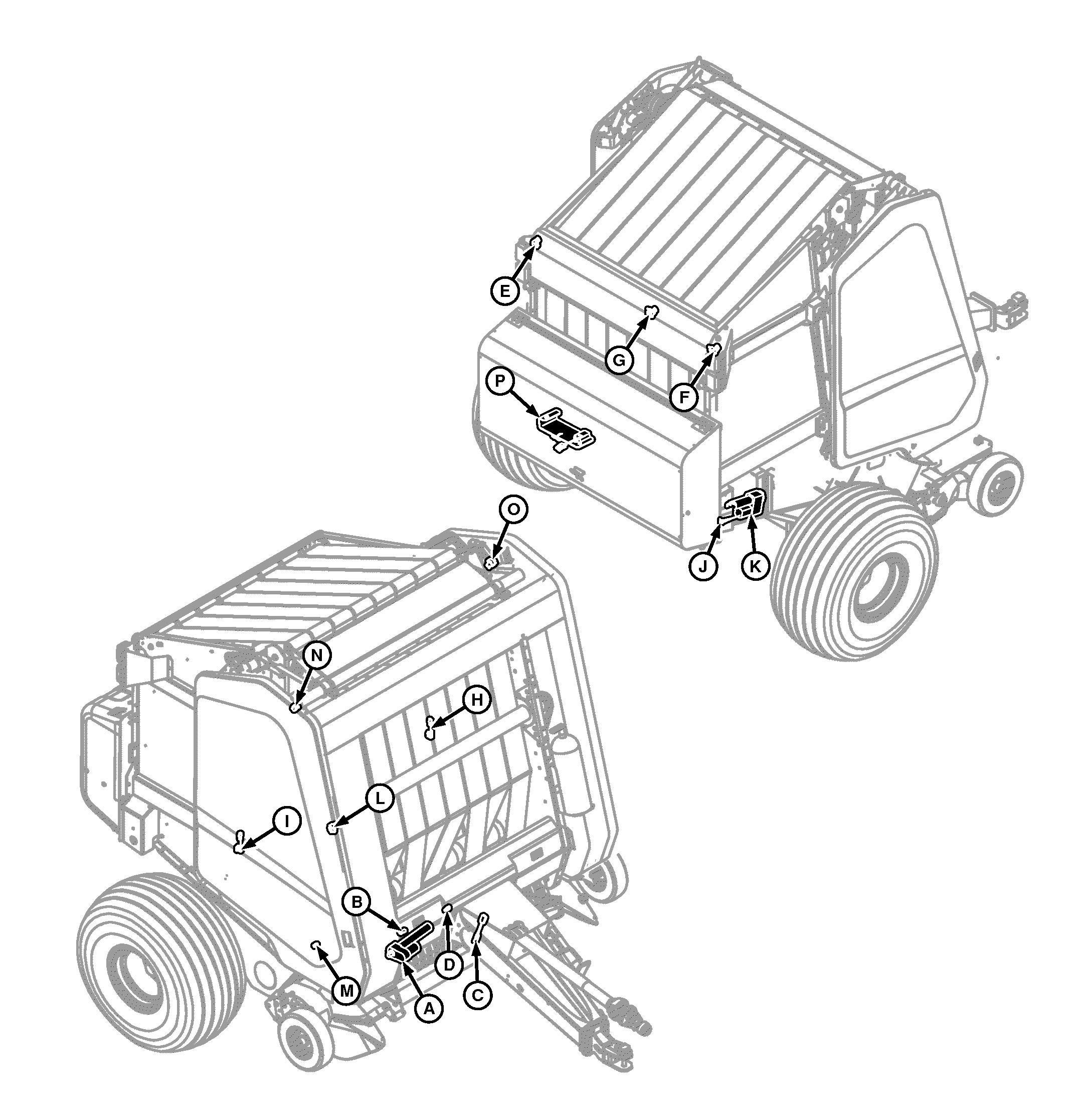

Component Location

E84550-UN-28SEP17

A - Twine Actuator

B - Twine Position Sensor

C - PTO Speed Sensor

D - Variable Core Solenoid

E - Left-Hand Bale Shape Sensor

F - Right-Hand Bale Shape Sensor

G - Center Bale Shape Sensor

H - Left-Hand Gate Latch Switch

I - Right-Hand Gate Latch Switch

J - Net Switch

K - Net Actuator

L - Bale Size Position Sensor

M - Lower Drive Roll Sensor (Slip Clutch Sensor)

N - Bale Oversize Switch

O - Gate Position Sensor

P - B-Wrap Sensor
