Set Bale Diameter

This setting determines the bale diameter at which the wrapping cycle starts automatically.

1. If bale diameter (B) is modified while baling, the new value is applied instantaneously.

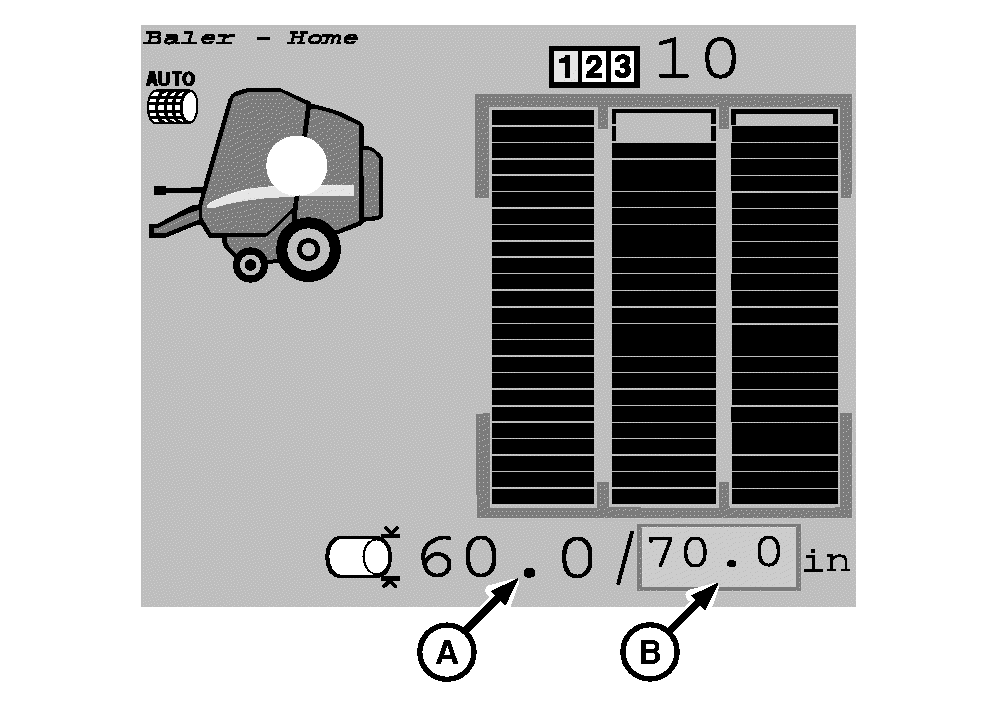

   E67034-UN-06AUG12

   A - Bale Diameter (Actual)

   B - Bale Diameter (Target)

   On the Main page, select the input box and set the desired bale diameter (B):
   • 79.2—182.9 cm (31.2—72 in) for balers using net or twine wrapping modes.
   • 79.2—172.7 cm (31.2—68 in) for balers using B-Wrap wrapping mode.



   The actual bale diameter (A) is shown on the display while baling.

---




2.
   E84879-UN-09OCT17

   The target bale diameter can also be adjusted on the baler settings page. From the baler application main page, select the Settings softkey.

---




3.

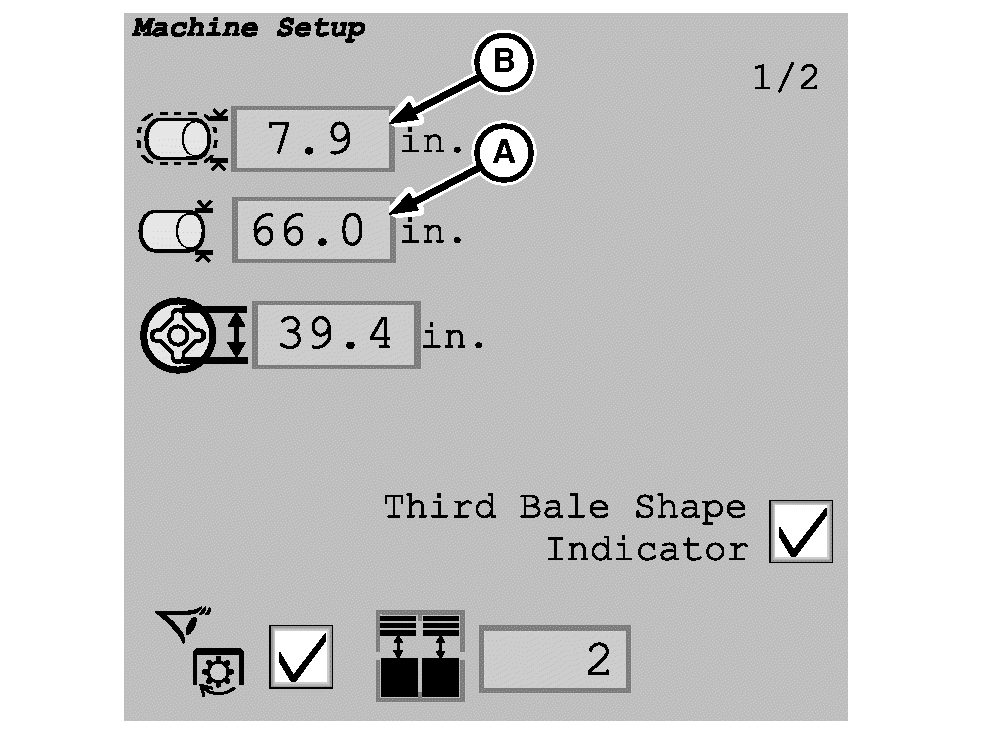

   E76597-UN-25JUL14

   A - Bale Diameter

   B - Near Full Alarm Offset

   Select the input box and set the target bale diameter (A):
   • 79.2—182.9 cm (31.2—72 in) for balers using Net or Twine wrapping modes.
   • 79.2—172.7 cm (31.2—68 in) for balers using B-Wrap wrapping mode.



   On the baler settings page, select the input box and adjust the near full alarm offset (B). (See Adjust Near Full Alarm Offset in this section.)

---




4.
   E84866-UN-05OCT17

   To return to the baler application main page, select the Main Page softkey.

---
