Adjust Near Full Alarm Offset

The near full alarm offset represents the distance below the preset bale diameter at which the near full symbol is displayed.

1.
   E84879-UN-09OCT17

   From the baler application main page, select the Settings softkey.

---




2.

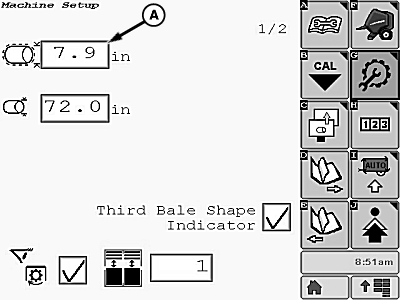

   E84897-UN-10OCT17

   A - Near Full Alarm Offset

   Select input box and set the distance 0—30 cm (0—11.8 in)

   The initial factory value is 20 cm (7.9 in). [See Automatic Start Of Wrapping Cycle in this section for more information about the near full alarm offset (A).]

---




3.
   E84866-UN-05OCT17

   To return to the baler application main page, select the Main Page softkey.

---
