Set Twine End Wrap Distance


Set Mechanical Twine Guide for End Wrap Distance

The 460R Baler is equipped with a left-hand twine guide only. (See Twine Wrap Terms and Settings in this section.)

E67582
E67582-UN-28AUG12

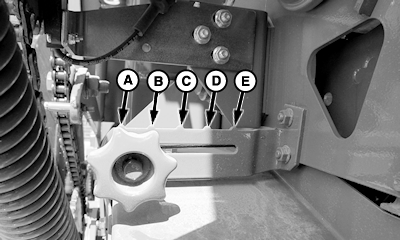

Right-Hand Side Shown

A - Distance, 89 mm (3.5 in)

B - Distance, 114 mm (4.5 in)

C - Distance, 140 mm (5.5 in)

D - Distance, 165 mm (6.5 in)

E - Distance, 190 mm (7.5 in)

The twine guide controls the twine wrap distance from the left-hand end of the bale. The twine wrap distance can be adjusted between 89—190 mm (3.5—7.5 in) in 25 mm (1 in) increments.

For most baling conditions, set the twine guide to position (B). This setting positions the twine end wraps approximately 114 mm (4.5 in) from the end of the bale.

For dry, slick crops such as straw, coastal Bermuda grass, or flax, increase the twine wrap distance to prevent twine from falling off the bale.

For crops such as alfalfa, that fill the bale ends well and produce square shoulders, decrease the distance to improve bale appearance and reduce bale spoilage.

To adjust the guide:

  1. Loosen knob.

  2. Move knob as follows:

    • Toward the baler side sheet to increase the twine end wrap distance
    • Away from the baler side sheet to decrease the twine end wrap distance

  3. Tighten knob.


Set Left-Hand and Right-Hand End Wrap Distance on Monitor

  1. To ensure that twine placement is controlled by the mechanical twine guide, adjust the monitor setting for twine end wrap distance 1—3 cm (0.50—1.00 in) less than the mechanical twine guide setting. This adjustment increases the number of end wraps.

    Turn the tractor ignition key to the ON position. Do not start the tractor engine.

  2. E84866
    E84866-UN-05OCT17

    Select the Baler Main Page softkey.


  3. E84878
    E84878-UN-05OCT17

    Select the Wrap Setup softkey on the baler application main page. Ensure that the twine system icon is shown on the wrap setup page


  4. E66974
    E66974-UN-09AUG12

    Left-Hand End Wrap Distance Input Box

    Enter a distance of 8—25 cm (3.1—9.8 in) in the left-hand input box.


  5. E66975
    E66975-UN-09AUG12

    Right-Hand End Wrap Distance Input Box

    Enter a distance of 8—25 cm (3.1—9.8 in) in the right-hand end wrap distance input box.


  6. The factory setting is 8 cm (3.1 in) for both sides. To place twine the same distance from the edge on both ends, a different setting can be required for each end.

DP99999,0000E4F-19-20171127
