Enable Auto-PTO Off for B-Wrap Automation

The Auto-PTO off feature enables the baler to command the tractor to shut off the PTO, which is necessary for B-Wrap application. The PTO must be off so that the bale can be oriented properly before it is ejected. The Auto-PTO off feature also enables the baler to command off the PTO if it detects the baler is plugged while in the Automation mode.

1.
   E84879-UN-09OCT17

   From the baler application main page, select the Settings softkey.

---




2.
   E84914-UN-16OCT17

   From the machine settings page, select the Automation Settings softkey.

---




3.

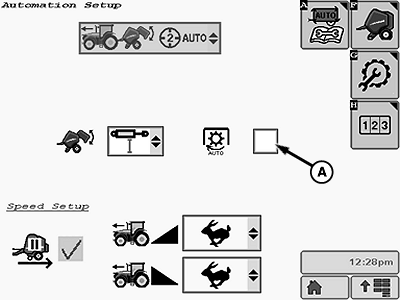

   E85051-UN-18OCT17

   A - Auto-PTO Check Box

   To enable off the Auto-PTO for B-Wrap automation, select the Auto-PTO check box (A).

---
