Adjust Front Twine Arm

  1. Turn the tractor ignition key to the ON position. Do not start the tractor engine.

  2. E84879
    E84879-UN-09OCT17

    Select the Settings softkey on the baler application main page.



  3. E64643
    E64643-UN-11MAY12

    Select the Baler Diagnostics softkey on the machine setup page.



  4. E84890
    E84890-UN-09OCT17

    Select the Test Output softkey on the diagnostics page.



  5. E85053
    E85053-UN-23OCT17

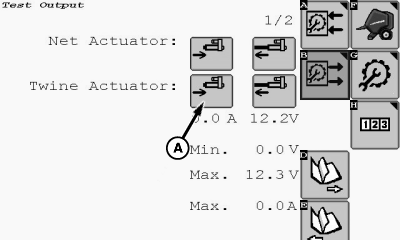

    A - Actuator Retract Softkey

    To move the twine arms to the home position, select the twine arm Actuator Retract softkey (A).



  6. Turn the tractor ignition key to the OFF position and remove key.

  7. The twine arms can move unexpectedly when twine arm power is on. Turn off power to twine arms when standing or placing hands near twine arms.

    E40629
    E40629-UN-02JUL96

    E40628
    E40628-UN-01JUL96

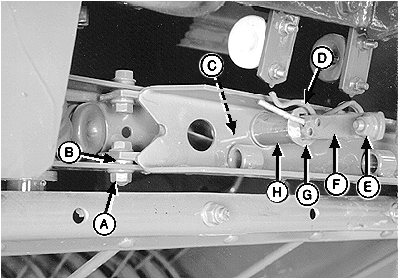

    A - Cap Screw and Nut

    B - Bushing

    C - Spring

    D - Spring-Locking Pin

    E - Cap Screw and Nut

    F - Twine Spacing Strap

    G - Washer

    H - Spacer

    I - Dimension

    J - Front Twine Arm

    K - Rear Twine Arm

    Remove cap screw and nut (E), spring-locking pin (D), washer (G), spacer (H), bushing (B), spring (C), and twine spacing strap (F).

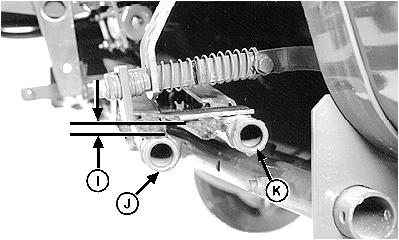

  8. Measure dimension (I) between tops of twine arms (J and K). Twine arm (K) must be higher than twine arm (J) according to specifications.

    Top of Front Twine Arm to Top of Rear Twine ArmDistance4.5—7.5 mm (3/16—5/16 in)

  9. To adjust, loosen the nut (A) enough that the end of the twine arm can be moved manually with some resistance.

    • If dimension (I) is less than specifications, move the end of the twine arm down until the correct distance is obtained.
    • If dimension is greater than specifications, move the end of the twine arm up until the correct distance is obtained.

  10. Tighten nut (A) to specifications.

    Twine Arm Pivot NutTorque80 N·m (60 lb·ft)

  11. Recheck dimension (I). Adjust as necessary.

  12. Install twine spacing strap (F), spring (C), bushing (B), spacer (H), washer (G), cap screw and nut (E). Install spring-locking pin (D) in the desired hole. Adjust twine spacing. (See Set Twine Spacing in Operating the Baler section.)

DP99999,0000E64-19-20171121
