Adjust Electric Twine Actuator

Twine arms can move unexpectedly. To avoid crushing, keep hands out of the twine arm path. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

Twine knife has two sharp cutting edges. Be careful when working around the knife.

The 460R is illustrated for the following procedure. On the 560R, the actuator is installed on the right-hand side.

If the twine actuator has been removed or replaced, or the twine cutter tension adjustment cannot be made by moving washers on the cutter strap, perform the following adjustments.

  1. E40625
    E40625-UN-06SEP00

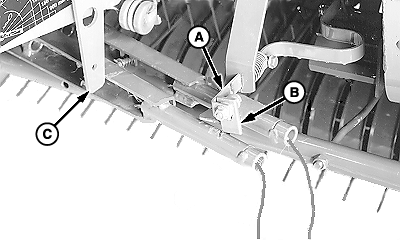

    A - Twine Cutter Strap

    B - Contact Tab

    C - Twine Arm Stop

    Adjust cutter strap (A) by placing two washers in the front of the contact tab (B) and four washers behind the contact tab. Make sure that the twine arm stop (C) is in the down position.



  2. E84879
    E84879-UN-09OCT17

    Turn the tractor ignition key to the ON position. Do not start the tractor engine.



  3. Select the Settings softkey on the baler application main page.

  4. E64643
    E64643-UN-11MAY12

    Select the Baler Diagnostics softkey on the machine setup page.



  5. E84890
    E84890-UN-09OCT17

    Select the Test Output softkey on the diagnostics page.



  6. E85053
    E85053-UN-23OCT17

    E85165
    E85165-UN-23OCT17

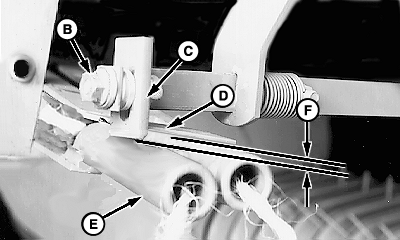

    A - Actuator Retract Softkey

    B - Nut

    C - Tab

    D - Strap

    E - Twine Arm

    F - Distance

    Select the twine Actuator Retract softkey (A) on the test output page. Move the twine arm (E) forward until it lightly contacts the tab (C) and strap (D).



  7. Turn the tractor ignition key to the OFF position and remove key.

  8. Loosen nut (B). Adjust the tab (C) to obtain distance (F) between the bottom edge of the tab and the bottom side of strap (D) according to specifications. Keep the tab vertical and tighten the nut.

    Bottom Edge of Tab to Bottom Side of StrapOverlap2—4 mm (3/32—5/32 in)

  9. Turn the tractor ignition key to the ON position.

  10. E84879
    E84879-UN-09OCT17

    Select the Settings softkey.



  11. E64643
    E64643-UN-11MAY12

    Select the Baler Diagnostics softkey on the machine setup page.



  12. E84890
    E84890-UN-09OCT17

    Select the Test Output softkey on the diagnostics page.



  13. E85053
    E85053-UN-23OCT17

    E85614
    E85614-UN-21NOV17

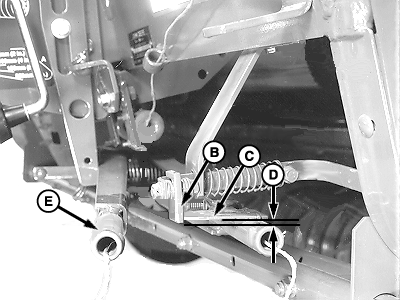

    A - Actuator Retract Softkey

    B - Tab

    C - Distance

    D - Twine Arm

    Select the twine arm Actuator Retract softkey (A) and move the twine arms forward.



  14. Turn the tractor ignition key to the OFF position and remove key.

  15. Check the overlap distance (C). The front twine arm (D) must pass under tab (B). If necessary, adjust the tab. Light contact between the tab and the front twine arm is acceptable.

  16. Turn the tractor ignition key to the ON position.

  17. E84879
    E84879-UN-09OCT17

    Select the Settings softkey.



  18. E64643
    E64643-UN-11MAY12

    Select the Baler Diagnostics softkey.



  19. E84890
    E84890-UN-09OCT17

    Select the Test Output softkey.



  20. E85052
    E85052-UN-23OCT17

    A - Actuator Extend Softkey

    Select the Actuator Extend softkey (A) and move the twine arms behind the twine cutter.



  21. Turn the tractor ignition key to the OFF position and remove key.

  22. Twine knife has two sharp cutting edges. Be careful when working around the knife.

    E39276
    E39276-UN-19JUN96

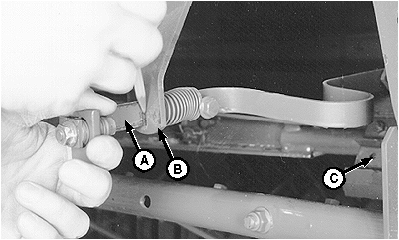

    A - Cutter Strap

    B - Support

    C - Knife

    Pull cutter strap (A) gently forward until knife (C) contacts the hex anvil. Remove slack, but do not deform the cutter strap.



  23. Mark the cutter strap (A) at the side of support (B) as shown.

  24. E40647
    E40647-UN-17JUL96

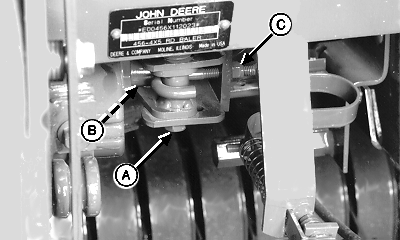

    A - Cap Screw

    B - Cap Screw

    C - J—Bolt Nut

    Loosen cap screw (A and B).



  25. Loosen J-bolt nut (C).

  26. Move cap screw (A) to end of the slot toward actuator.

  27. Tighten cap screws (A and B) so that the actuator pivot can be moved by hand, but with some resistance.

  28. Turn the tractor ignition key to the ON position.

  29. E84879
    E84879-UN-09OCT17

    Select the Settings softkey.



  30. E64643
    E64643-UN-11MAY12

    Select the Baler Diagnostics softkey.



  31. E84890
    E84890-UN-09OCT17

    Select the Test Output softkey.



  32. E85053
    E85053-UN-23OCT17

    A - Actuator Retract Softkey

    Select the twine Actuator Retract softkey (A) and move the twine arms to the home position.



  33. Turn the tractor ignition key to the OFF position and remove key.

  34. E40647
    E40647-UN-17JUL96

    E40626
    E40626-UN-29JUN96

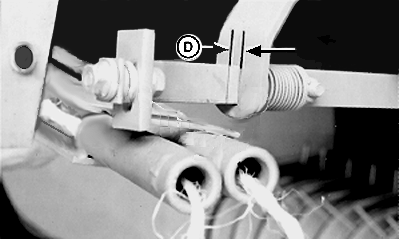

    A - Cap Screw

    B - Cap Screw

    C - J—Bolt Nut

    D - Distance

    Tighten the J-bolt nut (C) to adjust the distance (D) between the mark on the cutter strap and the strap support to specifications.

    Distance (D)Distance5—7 mm (3/16—9/32 in)



  35. Tighten cap screw (A) to specifications.

    Cap Screw (A)Torque140 N·m (103 lb·ft)

  36. Tighten cap screw (B) to specifications.

    Cap Screw (B)Torque95 N·m (70 lb·ft)

  37. Turn the tractor ignition key to the ON position.

  38. E84879
    E84879-UN-09OCT17

    Select the Settings softkey.



  39. E64643
    E64643-UN-11MAY12

    Select the Baler Diagnostics softkey.



  40. E84890
    E84890-UN-09OCT17

    Select the Test Output softkey.



  41. E85053
    E85053-UN-23OCT17

    A - Actuator Retract Softkey

    Select the twine Actuator Retract softkey (A) and move the twine arms to the home position.



  42. Turn the tractor ignition key to the OFF position and remove key.

  43. E40647
    E40647-UN-17JUL96

    E40626
    E40626-UN-29JUN96

    A - Cap Screw

    B - Cap Screw

    C - J—Bolt Nut

    D - Distance

    Recheck distance (D). If the distance is not within specifications, adjust as follows:

    1. Loosen cap screws (A and B).

    2. If distance (D) is less than specified, tighten J-bolt nut (C) until the correct distance is obtained.

    3. If dimension (D) is more than specified, loosen J-bolt nut (C) until the correct distance is obtained.

    4. Tighten cap screws (A and B). (See specifications in previous steps.)
