Install Net Wrap Actuator

  1. E48087
    E48087-UN-12JUN00

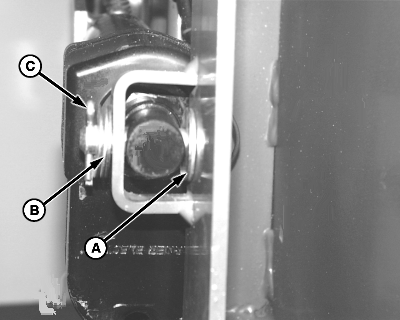

    A - Washer, 13 x 25 x 3 mm

    B - Washer, 13 x 25 x 3 mm (2 used)

    C - Cotter Pin, 4 x 25 mm

    Install the base end of the actuator (motor down) on the right-hand side of the gate with a previously removed crowned pin. Insert the pin through the inside hole in actuator support, washer (A), actuator, and the outside hole in the support.


  2. Install two washers (B) and cotter pin (C).

  3. E54541
    E54541-UN-01MAY06

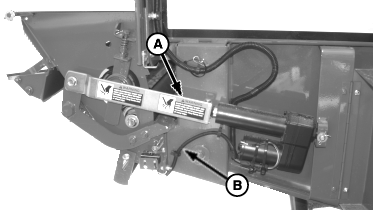

    A - Link

    B - Washer and Cotter Pin

    Install link (A) over the rod end of the actuator as shown. Insert a crowned pin (previously removed) from the top through the link and the actuator rod.


  4. Install a previously removed washer and cotter pin (B).

  5. Connect the wire harness to the actuator. Fasten the connector and harness to the actuator motor with a tie band.

  6. Close the actuator door.

  7. If this procedure is not followed, net feeds continuously during the next bale.

    Connect the ISOBUS baler plug to the tractor ISO socket. Turn the tractor ignition key to the ON position. Do not start the tractor engine.

  8. E84879
    E84879-UN-09OCT17

    Select the Settings softkey.


  9. E64643
    E64643-UN-11MAY12

    Select the Baler Diagnostics softkey.


  10. E84890
    E84890-UN-09OCT17

    Select the Test Output softkey .


  11. E82340
    E82340-UN-10MAR17

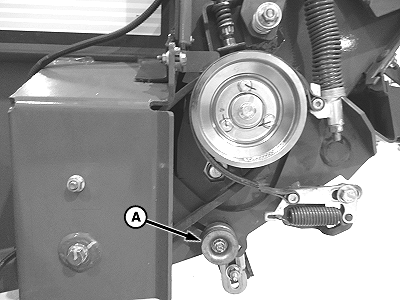

    A - Idler Pulley

    Mark the position of the V-belt idler pulley (A) and remove the pulley.


  12. E85235
    E85235-UN-25OCT17

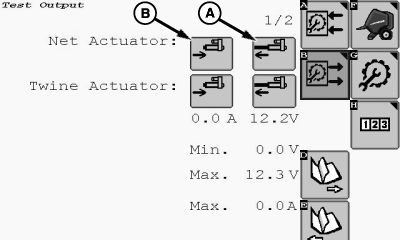

    A - Actuator Extend Icon

    B - Actuator Retract Icon

    Using the Actuator Extend icon (A) and the Actuator Retract icon (B), cycle the actuator several times. Observe the actuator and ensure that it fully extends and fully retracts. If not, check for binding at the mounting pins, clean the electrical connections, and check for low tractor voltage. There must be a minimum of 9.7 V with the tractor engine running.


  13. Use the extend or retract icon and return the actuator to approximately half way up or down.

  14. Reinstall the V-belt idler pulley in the original position.

  15. Using the extend or retract icon, move the actuator so that the idler pulley has no pressure on the belt.

  16. Turn off the engine and remove key.
