Calibrate Bale Diameter Sensor—Quick Calibration

The baler was calibrated from the factory using the quick calibration procedure. This procedure is used to calibrate the baler before baling any hay. If the bale diameter sensor is replaced or readjusted, use this procedure to calibrate the display.

1.
   E84879-UN-09OCT17

   From the baler application main page, select the Settings softkey.

---




2.
   E64646-UN-11MAY12

   Select the Calibration softkey on the machine setup page.

---




3.
   E64648-UN-11MAY12

   Select the Bale Diameter Calibration softkey.

---




4.

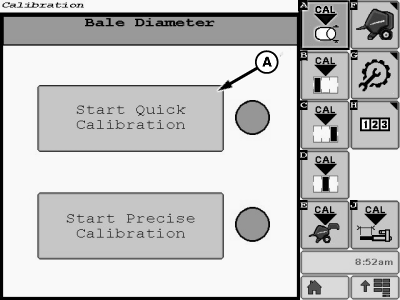

   E85246-UN-01NOV17

   A - Start Quick Calibration Button

   Select the Start Quick Calibration button (A) on the calibration page.

   Follow instructions on the monitor screen and select the task completion box after each step is complete.

---




5.

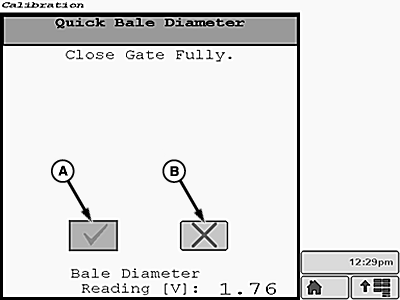

   E85245-UN-01NOV17

   A - Task Completion Box

   B - Cancel Calibration Box

   Using the tractor SCV, close the gate fully.

---




6. Select the task completion box (A) or the cancel calibration box (B).

7.

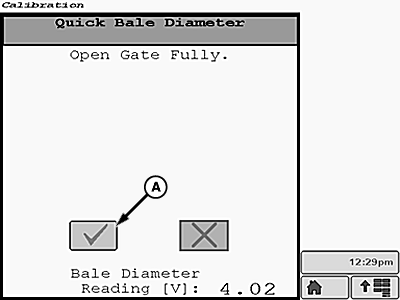

   E85247-UN-01NOV17

   A - Task Completion Box

   Using the tractor SCV, open the gate fully. Select the task completion box (A) when it appears on the monitor screen.

---




8.

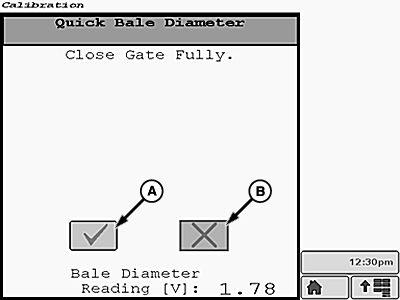

   E85248-UN-01NOV17

   A - Task Completion Box

   B - Cancel Calibration Box

   Using the tractor SCV, close the gate fully. Select the task completion box (A) or the cancel calibration box (B).

---




9. Repeat the gate operation cycle two additional times. The gate must be closed, opened, then closed again a total of three times.

10.

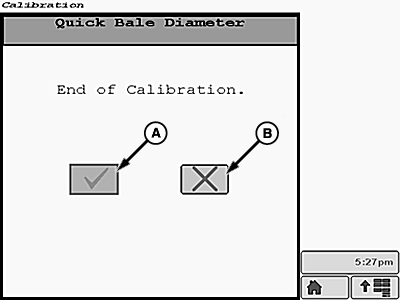

    E85249-UN-01NOV17

    A - Task Completion Box

    B - Cancel Calibration Box

    When all calibration steps have been completed, the End of Calibration screen appears on the monitor. Select the task completion box (A) or the cancel calibration box (B).

---




11.

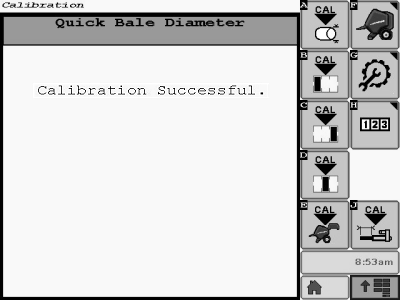

    E85286-UN-01NOV17

    After the Task Completion box is checked, the Calibration Successful screen appears.

---




12. If additional calibrations are necessary, the desired calibration softkey can be selected from the main menu on the current display screen.


    E84866-UN-05OCT17

    Select the Main Page softkey to return to the baler application main page.

---
