Adjust Pickup Float Springs (MegaWide™ Plus Pickup Only)

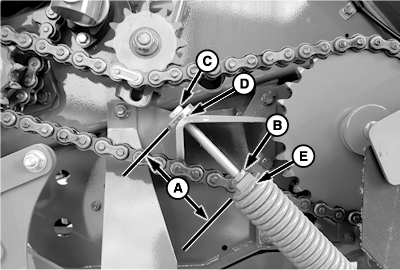

E85585
E85585-UN-10NOV17

Left-Hand Side Shown

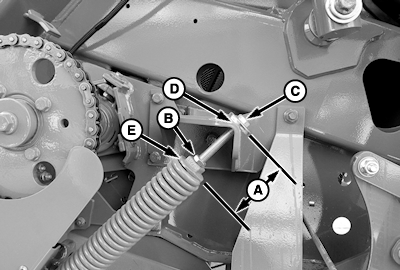

E85586
E85586-UN-10NOV17

Right-Hand Side Shown

A - Dimension (Spring Setting)

B - Lock Nut

C - Cap Screw

D - Spring Plug

E - Anchor

Dimension (A) is an initial float spring setting for pickup tooth-to-ground clearance of 25—50 mm (1—2 in).

More spring force is needed if operating with pickup tooth-to-ground clearance above 50 mm (2 in).

Less spring force is needed if:

  • The pickup does not lower to desired operating height.
  • The pickup bounces too much and leaves crop.

To adjust float springs:

  1. Loosen lock nut (B).

  2. Turn cap screw (C) until dimension (A) between spring plug (D) and anchor (E) is attained.

    Dimension (A)

    460R (Both Sides)

    75 mm (3 in)

    560R (Both Sides)

    55 mm (2 in)

  3. Tighten lock nut (B).

DP99999,0000E96-19-20171110
