Wheel Spindle Position
(MegaWide™ HC2 Feed System)

E82755-UN-18JUL17

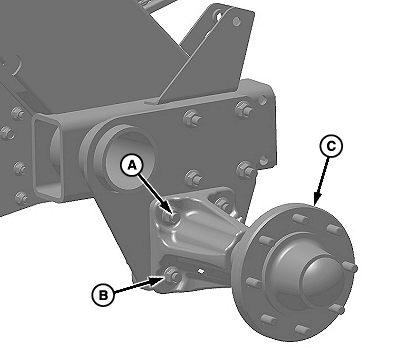

A - Cap Screw, M16 x 180 (4 used)

B - Nut, M16 (4 used)

C - Spindle

There is no raised wheel spindle position on this baler. Mounting the spindles in any position other than shown can result in machine damage.

1. Install cap screws with heads on the inside of the baler frame.

   Attach wheel spindle (C) to the baler frame using cap screws (A) and nuts (B).

2. Tighten nuts to specification.

   Flange Nuts	Torque	350 N·m (255 lb·ft)

3. Repeat on the opposite side.
