Release Net Wrap Feed Roll Brake

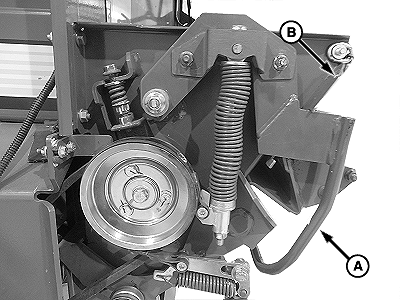

E82332
E82332-UN-01MAR17

A - Brake Lever

B - Latch

The manual brake release disengages the net feed rolls. Release the brake when threading net wrap or servicing the net wrap unit.

  1. Disengage the tractor PTO, shut off the tractor engine, and disconnect the ISOBUS baler plug from the tractor ISO socket.

  2. Open the net wrap cover.

  3. To disengage the feed roll brake, pull brake lever (A) out and up and rest on latch (B).

  4. To engage net wrap brake, return brake lever (A) to engaged position.

  5. Close the net wrap cover.

GW44282,0000763-19-20171103
