Correct Net Wrap Material Wrapping on Rubber Drive Roll

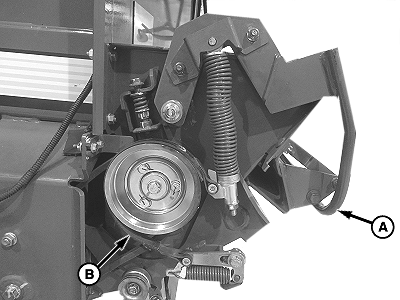

E82219-UN-22FEB17

A - Brake Lever

B - Brake

1. Disengage the tractor PTO, shut off the tractor engine, and disconnect the baler ISOBUS plug from the tractor ISO socket.

2. Open the net wrap cover.

3. To disengage the brake band (B), pull the brake lever (A) out and up to rest on top of the latch tab.

4. Do not cut the net wrap material from the rubber feed roll. Any knife cuts in the rubber roll covering can result in more frequent wrapping around the rolls and can require roller replacement.

   Pull the net wrap material away from the supply roll and the steel roll. Cut the net wrap material. Remove and discard all of the wrapped material, including all strings and staples.

5.

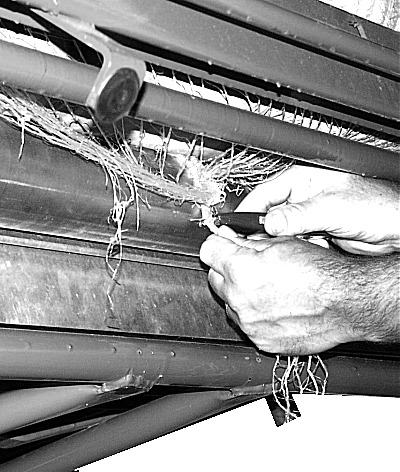

   E48359-UN-12JUL00

   Wipe off the rubber drive roll and check for any sticky material. If necessary, the roll can be washed with soap and water. NEVER use solvents to clean the rubber roll. Allow rolls to dry before threading the net wrap material or the net can wrap on the rubber roll again.

---




6. Thread the net wrap material. (See Load Net Wrap Material in Preparing Baler for Net Wrap section.)

7. If static electricity or dampness causes the net wrap material to cling to the rolls, dust the rubber drive roller with baby powder.

8.
   E82219-UN-22FEB17

   A - Brake Lever

   B - Brake

   To engage the brake (B), pull the brake lever (A) out and down towards the front of the machine.

---




9. Close the net wrap cover.

10. Plug the ISOBUS plug back into the tractor ISO socket.
