Twine Arm Timing
Twine arms can move unexpectedly. To avoid crushing,
keep hands out of the twine arm path. Turn off power BEFORE servicing
or adjusting twine arms or twine cutter mechanism.
Stay out of the path of twine arms at all times when power to twine arms is ON.
E39695-UN-31JAN96

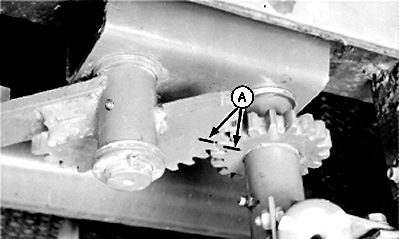

A - Timing MARKS
When replacing or servicing twine arm or drive gear, make sure timing marks (A) are lined up as shown.|
