Install GreenStar™ 2 1800 Display

1.

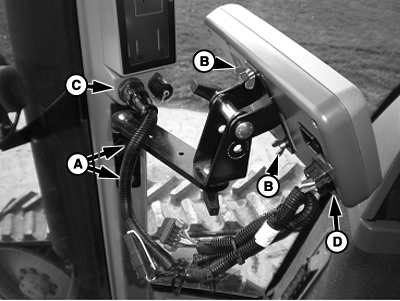

   PC10857GA-UN-28OCT08

   A - Corner Post Mounts

   B - Wing Nuts (2 used)

   C - Vehicle Display Connector

   D - Connector on Display

   Attach bracket to corner post mounts (A).

---




2. Attach display to bracket using the wing nuts (B) (provided with display).

3. Attach harness to the corner post connector (C) and the lower connector on the back of the display (D).

4.

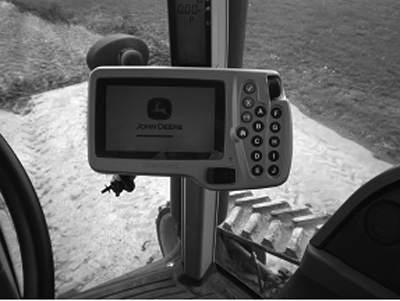

   PC10857GC-UN-28OCT08

   Position the display so that it is comfortable to reach and does not obstruct your view.

   Display must be connected to SWITCHED and CONSTANT power. This allows the display to shut down properly and save data. When the key is switched off, a Saving Settings message will appear on the screen.

   Bracket and harness are sold separately.

   Different models of tractors can require different harnesses for proper operation of an ISO monitor. See your John Deere dealer for proper harness.

---
