Connect Round Baler Wire Harness

  1. If the tractor does not have a factory installed ISOBUS connector, see your John Deere dealer to order proper harness to install ISOBUS plug and connect ISO monitor.

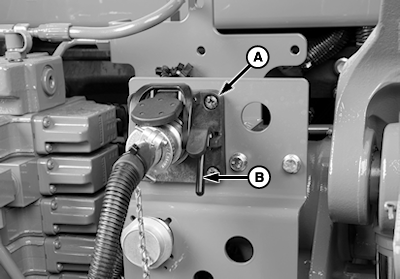

    E66136
    E66136-UN-13JUL12

    A - Breakaway Connector

    B - Lever

    Connect machine wire harness plug to the ISOBUS implement breakaway connector (A).


  2. Lock plug in place with lever (B).

In addition to the ISOBUS connector, some tractors can require an auxiliary wire harness to run the ISO monitor. See your John Deere dealer.

PP98408,000112E-19-20130212
