Monitor Support (6000, 7000, and 8000 Series Tractors Only)

A monitor support is available from your John Deere dealer.

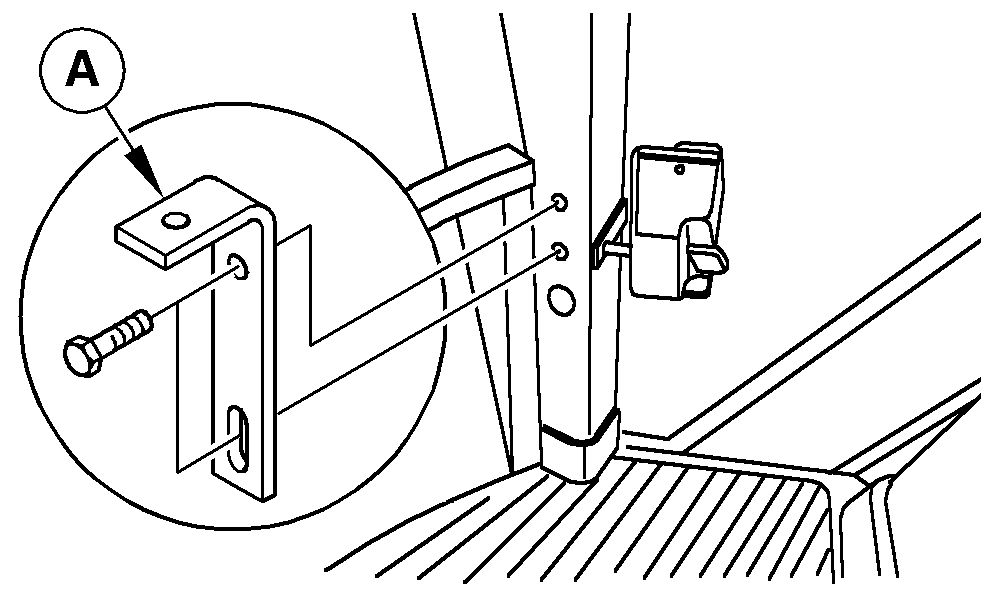

  1. E66644
    E66644-UN-13JUL12

    E66645
    E66645-UN-13JUL12

    A - Angle

    Remove the top two plugs from the lower right-hand cab post.


  2. Install angle (A) to cab post using two M10 x 20 flange cap screws.

  3. Assemble parts on angle (A) as shown.

  4. Install monitor.

PP98408,0001183-19-20130212
