Monitor Wiring Harness

E66659
E66659-UN-13JUL12

E66660
E66660-UN-13JUL12

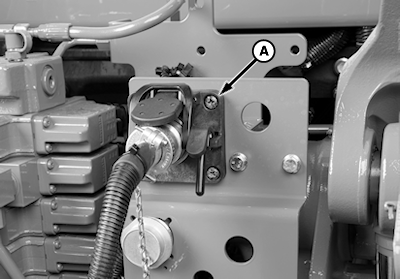

A - ISOBUS Implement Connector Outlet

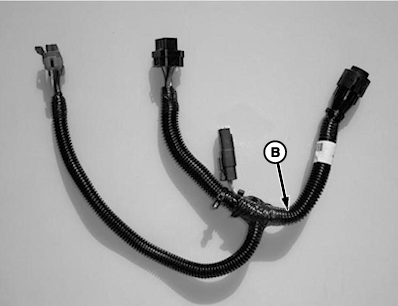

B - Auxiliary Harness

On some tractors that are factory equipped with an ISOBUS implement connector outlet (A), it can be necessary to purchase an auxiliary harness (B) to connect ISO monitor to the tractor.

See your John Deere dealer for proper harness for your tractor model.

PP98408,0001186-19-20130212
