Adjust Twine Guide Arm Spring

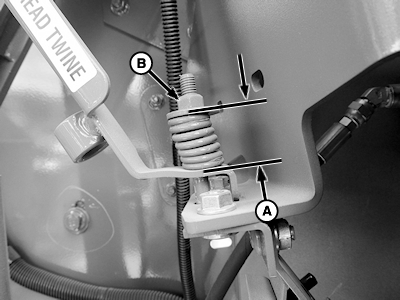

  1. E66900
    E66900-UN-25JUL12

    A - Distance, 28—32 mm

    B - Flange Nut

    Twine guide arm spring must be set to 28—32 mm (1.10—1.25 in.) (A), to provide tension on twine arm.


  2. Increase or decrease spring length by loosening or tightening flange nut (B).

PP98408,00011D7-19-20130212
