Replace Bale Shape Sensor

1.

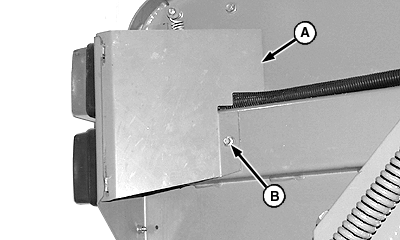

   E47621-UN-07JAN00

   Right-Hand Side Shown

   A - Shield

   B - Rolling Thread Cap Screw

   Engage gate lock and raise tension arm.

---




2. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

3. To replace sensor remove rolling thread cap screw (B). Rotate shield (A) away from baler.

4.

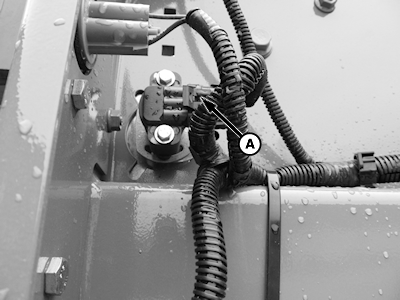

   E62314-UN-03APR12

   Right-Hand Side Shown

   A - Wire Connector

   Disconnect wire connector (A).

---




5.

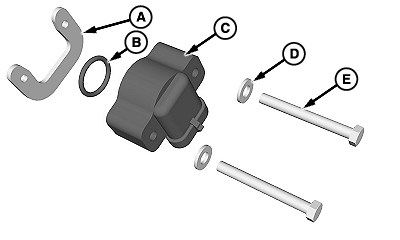

   E73501-UN-25MAR14

   A - Mounting Strap

   B - O-ring

   C - Sensor

   D - Washer (2 used)

   E - Mounting Screw (2 used)

   Remove parts (A—E).

---




6. Install new sensor in reverse order of removal using the following procedure:

   • Install using a new O-ring
   • Calibrate bale shape sensor



7. Confirm sensor operation using monitor.
