Adjust Gate Latch Proximity Switches

1.

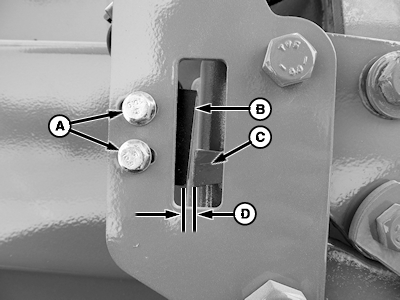

   E66871-UN-27JUL12

   A - Bolts

   B - Proximity Switch

   C - Latch Bar

   D - Dimension, 3 mm (0.12 in.)

   Close and latch gate. (Gate cylinders must be fully retracted.)

---




2. Loosen bolts (A) and move switch so it is parallel with mounting window edge and correct distance (D) from latch bar (C).

3. Ensure proximity switch (B) is even distance from top and bottom of latch bar (C). Set distance to specification.

   Proximity Switch	Distance	3 mm (0.12 in.)

4. Repeat on opposite side.

5. Confirm switch operation using monitor. (See TEST SWITCHES USING MONITOR in this section.)
