Replace Gate Latch Proximity Switches

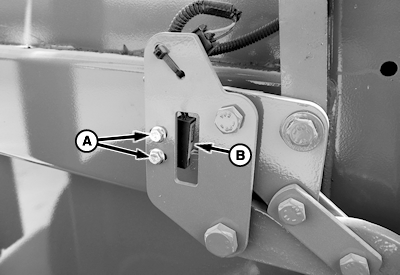

  1. E66869
    E66869-UN-23JUL12

    A - Mounting Hardware

    B - Proximity Switch

    Turn tractor key to OFF position. Remove key.


  2. Remove mounting hardware (A) and switch (B).

  3. Disconnect wire harness from switch.

  4. Remove switch from mounting bracket.

  5. Install new switch in reverse order of removal using the following procedure:

    • Adjust switch position for proper operation. (See ADJUST GATE LATCH PROXIMITY SWITCHES) in this section.)
    • Confirm switch operation by taking test readings using monitor. (See TEST SWITCHES USING MONITOR in this section.)

PP98408,00011E8-19-20130212
