Replace Oversize Bale Switch

  1. Turn tractor key to OFF position. Remove key.

  2. Label wires before disconnecting from switch to ensure proper connection to new switch terminals.

    Label wires.

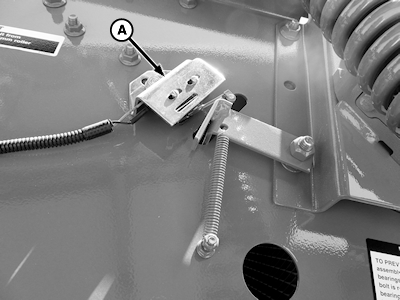

  3. E66870
    E66870-UN-23JUL12

    A - Oversize Bale Switch

    Remove mounting hardware and bracket with switch (A).


  4. Remove switch from mounting bracket.

  5. Disconnect wires from switch.

  6. Install new switch in reverse order of removal using the following procedure:

    • Adjust switch or bracket position for proper operation. (See ADJUST OVERSIZE BALE SWITCH in this section.)
    • Confirm switch operation using monitor. (See TEST SWITCHES USING MONITOR in this section.)
