Correct Net Wrap Feeding Problems

E40200-UN-08JUL96

E66919-UN-30JUL12

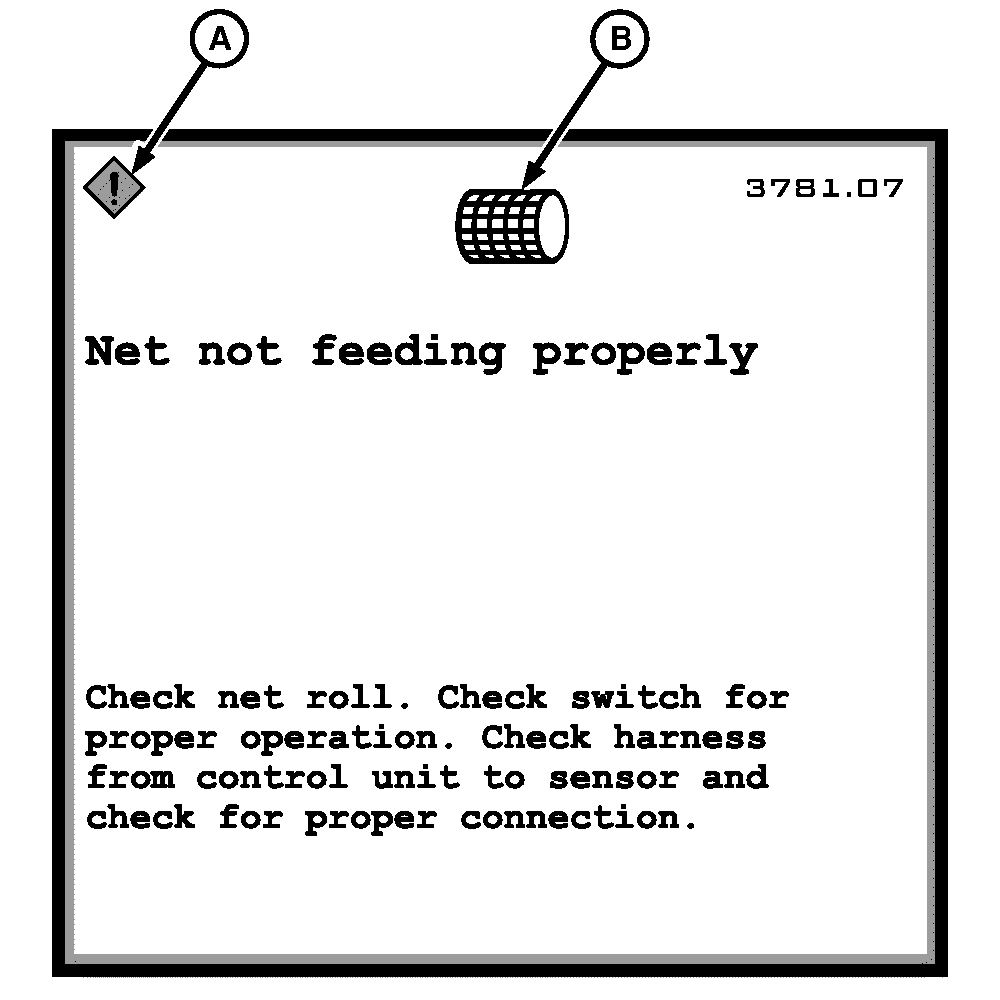

A - Error Warning Icon

B - Net Wrap Indicator

If the net does not feed properly the error warning icon (A) and the net wrap indicator (B) displays and the alarm sounds.

To correct net feeding or knife problems, perform the following:

• Check for net material looped away from the steel roll and contacting counterknife. (See Check For Looped Net Material in this section.)
• Check brake roller torque. (See Check And Adjust Net Wrap Feed Roll Brake in this section.)
• Check that gap between the front panel and rubber feed roll is to specification. Gap must be 3—6 mm (0.12—0.24 in). (See Check Front Sheet To Rubber Roll Clearance in this section.)
• Check for cuts or nicks on the rubber feed roll that can make net material stick to rubber roll. (See Repair Cuts On Rubber Feed Roll in this section.)
• Check for long or uneven tails of net material after cut-off. (See Adjust Net Wrap Counterknife And Sharpen Net Wrap Knife in this section.)
• Remove and clean brush. Dirt fills brush and prevents clean cuts. (See Install And Adjust Net Wrap Brush in this section.)
• Check that net pan is touching both outside belts and at least two of the four center belts. (See Check And Adjust Net Pan Pressure in this section.)
• Check if one or both crop deflector's are sticking out between the outside belts and side sheet of baler. (See Check For Bent Crop Deflectors in this section.)
• Check that counterknife is raising high enough to let net flow. (See Check And Adjust Net Wrap V-Belt Idler Tension in this section.)
• Check for contact between idler bolt head and bolt head after making the net wrap pan adjustment. (See your John Deere dealer.)
• Check for pin wear in the oval slot (below the steel roll) in the net wrap side sheets. (See Check Hole Wear In Surface Wrap Side Panel in this section.)
