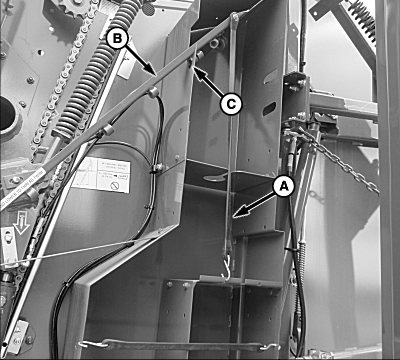

E83974-UN-31JUL17
A - Strap
B - Twine Guide Arm
C - Notch
Place twine ball into lower shelf.
-
Disconnect the rubber strap (A) from the lower shelf.
-
Remove the twine guide arm (B) from notch (C). Rotate the arm
down to thread the twine.
-

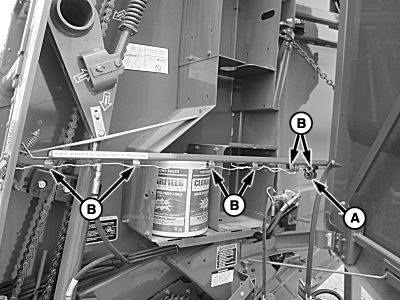

E83975-UN-31JUL17

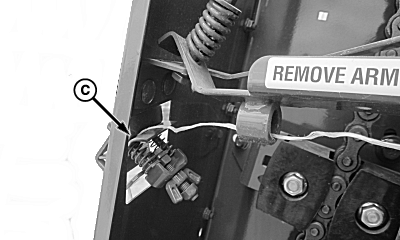

E85537-UN-07NOV17
A - Porcelain Guide
B - Guide (6 used)
C - Tension Plates
A twine threading label is located by the twine box on the
right-hand side of the baler.
Route the twine through porcelain guide (A) and guides (B) on
the front twine arm.
-
Insert the twine between the tension plates (C) on the front
panel and pull it out through the front side of the baler.
-

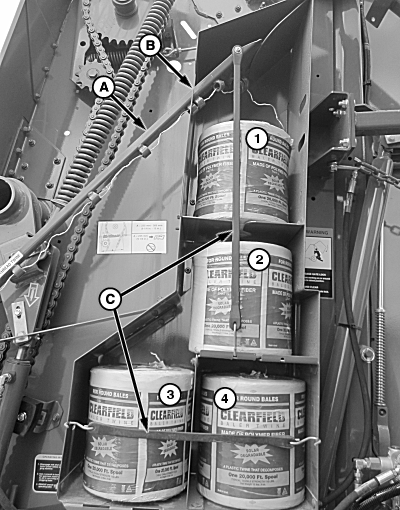

E83977-UN-31JUL17
A - Twine Guide Arm
B - Twine Box Notch
C - Strap (2 used)
Rotate the twine guide arm (A) upward and into the twine
box notch (B).
-
Move the twine ball from the lower shelf to the top shelf in
the twine box.
-
Fill the empty shelves with twine.
-
Attach the retainer straps (C) as shown.
-
Ensure that the proper knot is used according to the type
of twine. (See Tie Twine Balls in this section.)
Connect the twine balls as follows:
-
Tie the outside twine end from twine ball number 1 to the center
twine end of ball number 2.
-
Tie twine ball number 2 to twine ball number 3.
-
Tie twine ball number 3 to twine ball number 4.
-
Check that the twine moving indicator wheel (A) is free
to spin without twine.

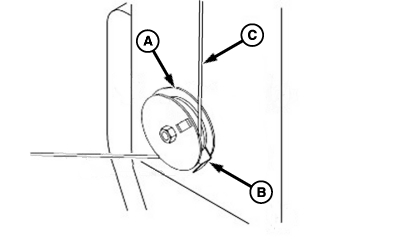

E85669-UN-27NOV17
A - Twine Moving Indicator Wheel
B - Twine Guide
C - Twine
When using plastic twine or small sisal twine, route the
twine (C) through the twine guide (B) and a FULL turn around the twine
moving indicator wheel (A). The twine must wrap behind the strand
which comes down from the twine box.
-
Wrapping large sisal twine a full turn around the indicator
wheel can cause the twine to cling to itself and break, or cause excessive
twine tension.
A twine threading label is on the right-hand
side of the tongue.

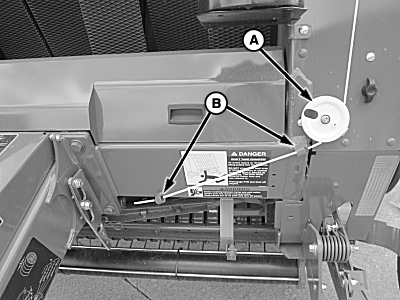

E83978-UN-31JUL17
A - Twine Moving Indicator Wheel
B - Twine Guides
When using large sisal twine, route the twine around the
twine moving indicator wheel (A) approximately one-quarter turn as
shown.
-
Route the twine through guides (B).
-
Twine arms can move unexpectedly. Avoid crushing, keep
hands out of the twine arm path. Turn off power BEFORE servicing or
adjusting twine arms or twine cutter mechanism.
Stay
out of the path of twine arms at all times when power to twine arms
is ON.

E47598-UN-07JAN00

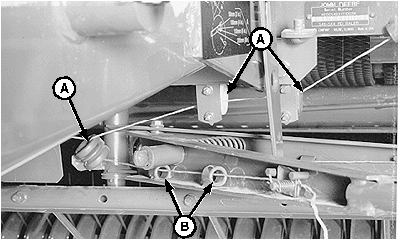

E40140-UN-21JUN96
A - Twine Guides
B - Twine Arm Guides
Route the twine through guides (A) and front twine arm guides
(B).
-
Remove any crop buildup from tension plate area before
threading twine.

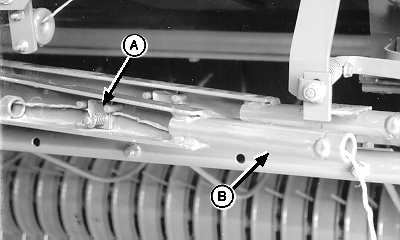

E40524-UN-15JUN96
A - Twine Tension Plate
B - Twine Tube
Route the twine over the tension plate (A) and under the
guide pins. Pull on the twine to get twine between plates.
-
Pull the twine through twine tube (B). Pull on the twine to
remove the slack between guides. Twine tension must meet specifications
with the twine perpendicular to the twine arm. To adjust twine tension,
see Adjust Twine Tension in Operating the Baler section.
| | |
|
Twine Tension | Pull (Force) | 22—45 N (5—10 lbf) |
-
Cut the twine 305—381 mm (12—15 in) beyond the twine tube (B).
