Wheel Spindle Positions—Regular Pickup with 14L x 16.1 Tires (560M Only)

Wheel spindle position controls baler height and feeding capacity.

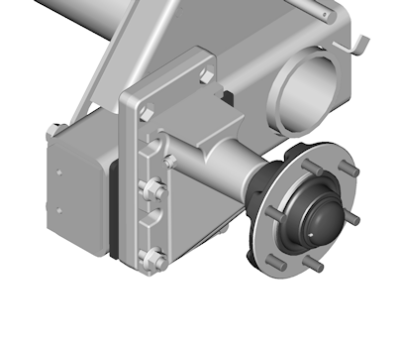

E85615-UN-22NOV17

Normal Position

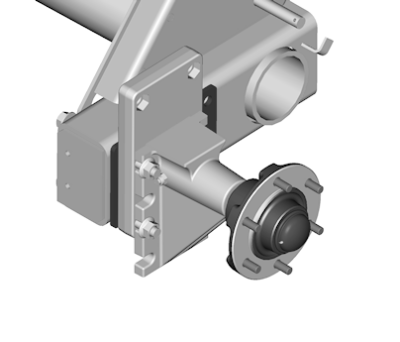

E85616-UN-22NOV17

Raised Position

• Recommended with push bar.
• Pickup teeth do not touch the ground with pickup lowered, depending on tractor drawbar height.

Raised position is recommended for cornstalks, straw crops with tall stubble, or soft ground conditions. (See Bale Cornstalks in Operating the Baler section.)

• Recommended with push bar.
• Pickup teeth do not touch the ground with the pickup lowered.
• Tighten nuts to specification.

  Wheel Spindle Mounting Hardware	Torque	237 N·m (175 lb·ft)

• If the pickup will not lower or bounces excessively, adjust pickup float springs to provide less force (float). (See Adjust Pickup Float Springs in Service—Baler section.)
• Install Tires. (See Tire Installation And Wheel Nut Torque in this section.)

If the wheel spindle position must be changed, see Adjust Wheel Spindles in this section.
