Wheel Spindle Positions—460M and 560M Balers with MegaWide™ Plus Pickup and 14L x 16.1 Tires

Wheel spindle position controls baler height and feeding capacity.

E85617-UN-22NOV17

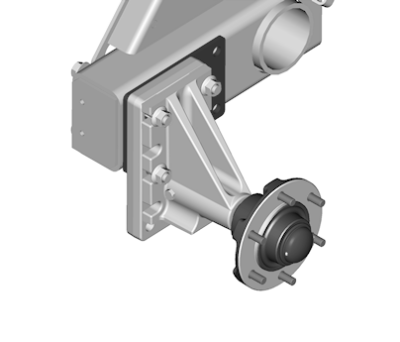

Normal Position

E85618-UN-22NOV17

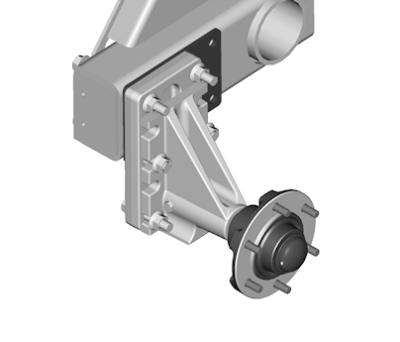

Raised Position

Normal position is recommended for most baling conditions.

• Recommended for push bar.
• Pickup teeth do not touch the ground with pickup lowered depending on tractor drawbar height.

Raised position is recommended for straw crops with tall stubble and soft ground conditions.

• Recommended for push bar.
• Pickup teeth do not touch the ground with the pickup lowered.
• Tighten nuts to specification.

  Wheel Spindle Mounting Hardware	Torque	237 N·m (175 lb·ft)

• Install tires. (See Tire Installation and Wheel Nut Torque in this section.)

If wheel spindle position must be changed, see Adjust Wheel Spindles in this section.
