Every 30 Hours


PTO Driveline (Regular and MegaWide™ Plus Pickup)

Regular greasing with the proper amount of grease is important for maintaining driveline life and quiet operation.

Use only John Deere Polyurea grease.

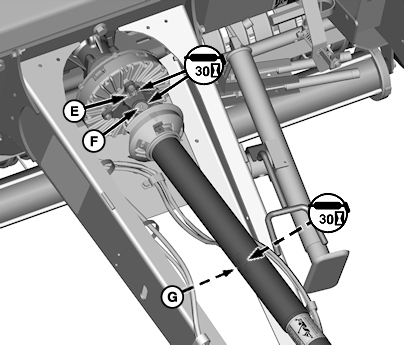

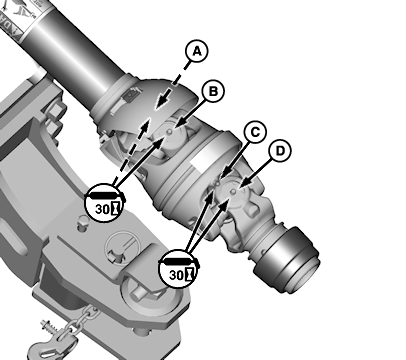

Lubricate fittings (A—G) with the amount of grease listed after every 30 operating hours. Only use John Deere SD Polyurea Grease.

E62422
E62422-UN-09AUG12

E62423
E62423-UN-09AUG12

A - Fitting (5 pumps)

B - Fitting (5 pumps)

C - Fitting (30 pumps)

D - Fitting (5 pumps)

E - Fitting (5 pumps)

F - Fitting (5 pumps)

G - Fitting (10 pumps)


PTO Driveline (MegaWide™ HC2 Pickup Only)

Regular greasing with the proper amount of grease is important for maintaining driveline life and quiet operation.

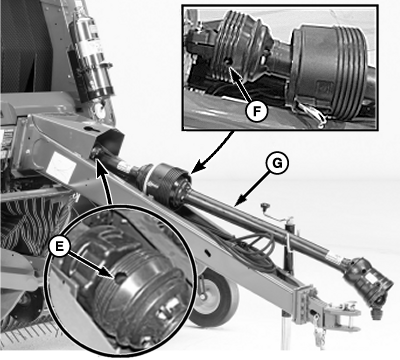

Raise the PTO shield to access fitting (E). Release latches and slide the center shield cone back to access fitting (F).

Lubricate fittings (A—G) with the amount of grease listed after every 30 operating hours. Only use John Deere SD Polyurea Grease.

E62422
E62422-UN-09AUG12

E83514
E83514-UN-10AUG17

A - Fitting (5 pumps)

B - Fitting (5 pumps)

C - Fitting (30 pumps)

D - Fitting (5 pumps)

E - Fitting (5 pumps)

F - Fitting (5 pumps)

G - Fitting (10 pumps)


Pickup Lift Crank

E47610
E47610-UN-07JAN00

Pickup Lift Crank Threads

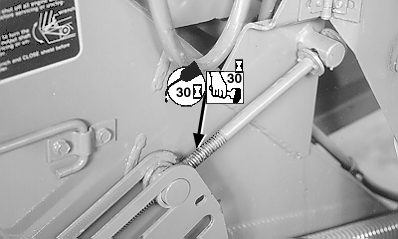

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.


Twine Arms and Twine Actuator Rod

Twine arms can move unexpectedly. Keep hands out of the twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arm is ON.

E47598
E47598-UN-07JAN00

E39603
E39603-UN-20NOV95

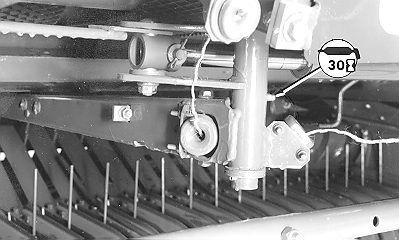

460M

E39777
E39777-UN-22FEB96

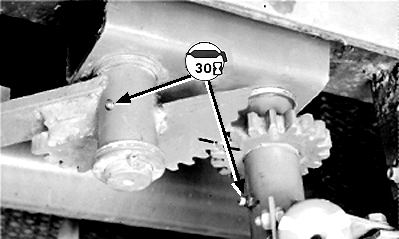

560M

Clean off foreign material or crop buildup from actuator rod.


Pickup Drive Idler Pivot

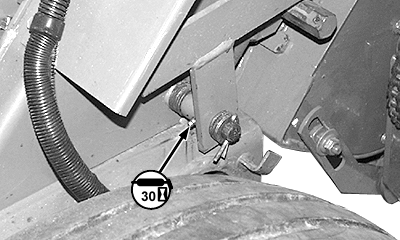

E48763
E48763-UN-02AUG00

Right-Hand Side

Shield removed for clarity.


COVER-EDGE™ Net Wrap Counterknife Arm Pivot (If Equipped)

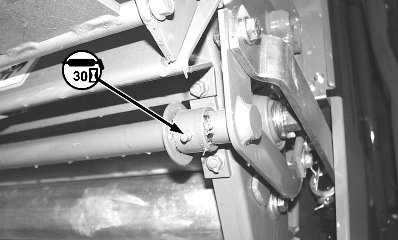

E48340
E48340-UN-12JUL00

Right-Hand Side Shown

Do not over-lubricate the counterknife arm pivot. Over-lubrication results in grease getting onto the rubber roll, causing wrappage.

Lubrication fittings are on both left and right-hand sides.


Pickup Idler Arm

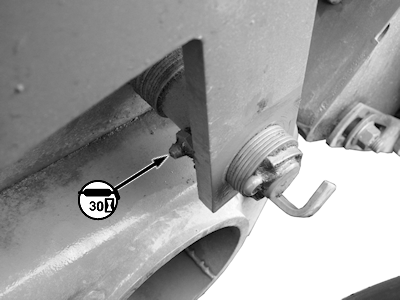

E61069
E61069-UN-16AUG12

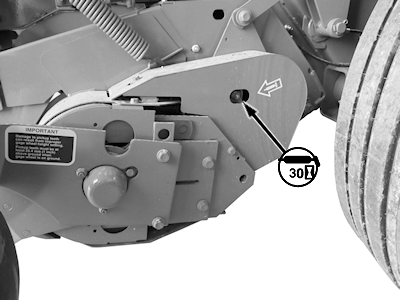

Right-Hand Side

E61070
E61070-UN-16MAR12

Left-Hand Side


Pickup Lift Bellcrank Pivot

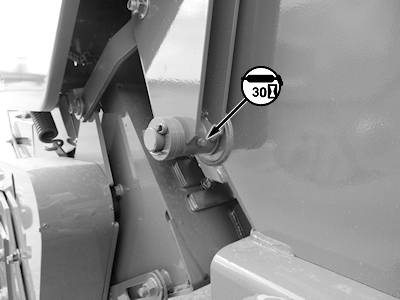

E61081
E61081-UN-16MAR12

Left-Hand Side

DP99999,0000D1A-19-20170920
