Adjust Twine Cutter to Twine Arm

1.


   E84161-UN-22AUG17

   Twine arms can move unexpectedly. Keep hands out of the twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

   Stay out of the path of twine arms at all times when power to twine ares is ON.

   Twine knife has two cutting edges. Be careful when working around the knife. It is sharp.

   Remove crop material from knife and hex anvil area.

---




2.

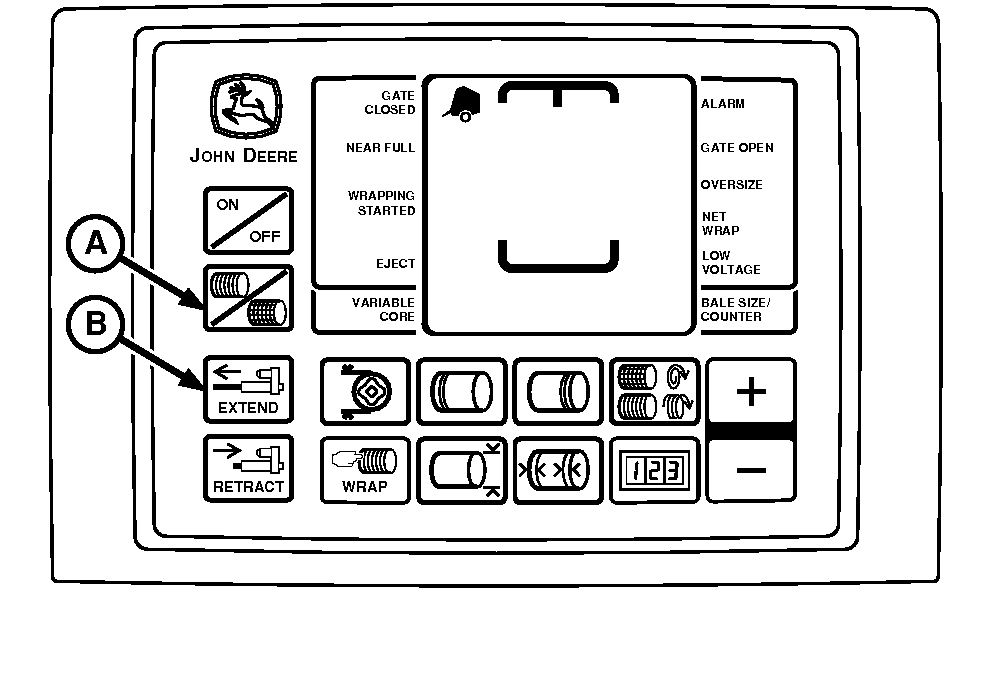

   E52523-UN-02JUN08

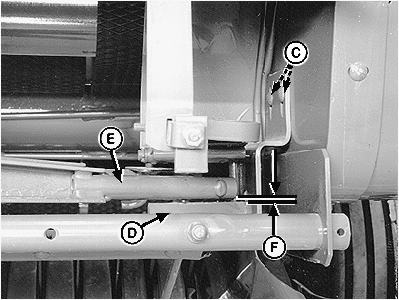

   E40624-UN-29JUN96

   A - Twine Symbol

   B - Extend Key

   C - Nuts

   D - Knife Hex Anvil

   E - Twine Arm Tube

   F - Clearance

   Turn the tractor ignition key to the ON position. Do not start the tractor engine. Press the ON-OFF key to turn the monitor-controller ON.

---




3. Press and briefly hold the TWINE or NET key to select the TWINE mode.

4. Press the monitor-controller EXTEND key (B) to move the front twine arm tube until centered over hex anvil.

5. Turn the monitor-controller OFF. Turn the tractor ignition key to the OFF position and remove the key.

6. Loosen nuts (C).

7. Adjust the twine cutter, so the clearance (F) between the knife hex anvil (D) and the front twine arm tube (E) is within specifications. The twine cutter bracket must be parallel with the bottom edge of the frame.

   Knife Hex Anvil-to-Front Twine Arm Tube	Clearance	0.5—3.5 mm (0.020—0.138 in)

8. Tighten nuts (C).

9. If the rear twine arm contacts the bottom side of the knife support and minimum clearance in step 7 is obtained, bend the twine cutter bracket so the hex anvil is parallel to the twine arm.

10. Check knife adjustment. (See CHECK AND ADJUST TWINE CUTTER KNIFE in this section.)
